Safire SF-VIMOD-HUB-M2 - Converter, 2 wires to IP, 6 groups of 2 wires, TCP /…
search
  • Safire SF-VIMOD-HUB-M2 - Converter, 2 wires to IP, 6 groups of 2 wires, TCP /…

Safire SF-VIMOD-HUB-M2 - Converter, 2 wires to IP, 6 groups of 2 wires, TCP /…

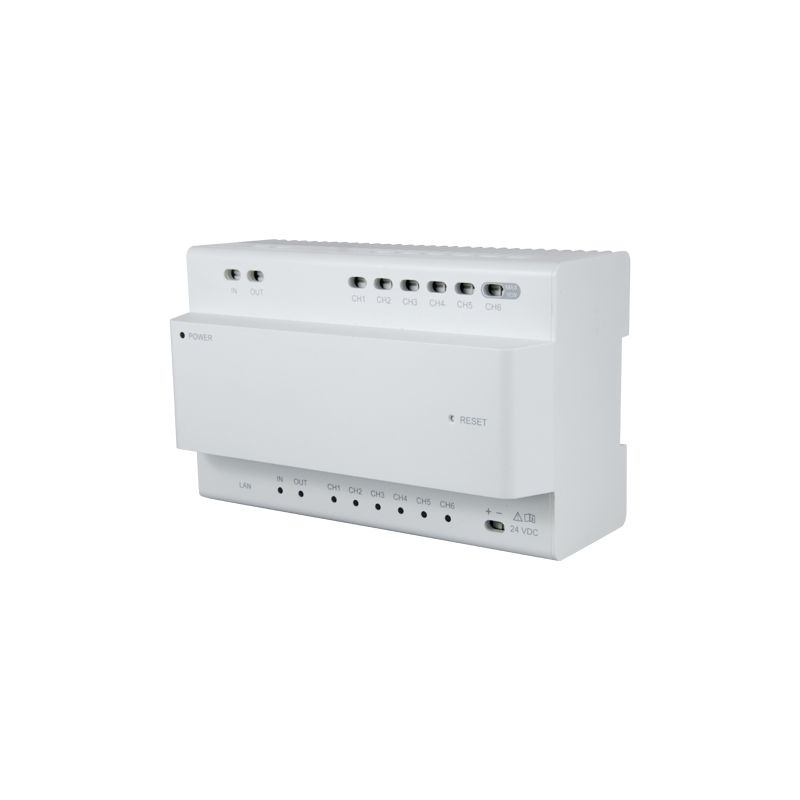

Converter - 2 wires to IP - 6 groups of 2 wires - TCP / IP with RJ45 - For powering 2 wire devices - Cascade Hub Connection
€144.00
Tax included
Reference SF-VIMOD-HUB-M2
Brand Safire
Quantity
Out-of-Stock

Free shipping

You might also like

  • Safire - second generation
  • Converts 2 wire to IP
  • 5 channels of 2 wires
  • 1 channel of 2 wires with 16W
  • TCP/IP connection RJ45
  • Status indicators
  • 2 channels for hubs in cascade
  • Accessory for panel and monitor
  • Surface or DIN rail mounting
  • Powers 2 wire devices

Features

  • Converter
  • 2 wires to IP
  • 6 groups of 2 wires
  • TCP / IP with RJ45
  • For powering 2 wire devices
  • Cascade Hub Connection

Specs

Brand Safire
Operation mode Power, Video & Audio all via the 2 wire technology
Outputs 6 channels of 2 wires including 1 channel of 2 wires (16W max power)
Cascade 2 channels for cascade connection of SF-VIMOD-HUB-M2 or SF-VIMOD-HUB-2
Communication 2-hilos Technology (Up to 6 devices)
Network interface Ethernet 10/100 BaseT
Power DC 24 V / 2,5 A max.
Temp. operation -10º C ~ +55º C
Weight 500 g

Package content

  • 2-hilos Hub for video intercoms
  • User instructions

Data sheet

Weight
500 g
Power
DC 24 V / 2,5 A max.
Temp. operation
-10º C ~ +55º C
Outputs
6 channels of 2 wires including 1 channel of 2 wires (16W max power)
Power supply
DC 24 V / 2,5 A max.
Communication
2-hilos Technology (Up to 6 devices)
Network interface
Ethernet 10/100 BaseT
Brand
Safire
Operation mode
Power, Video & Audio all via the 2 wire technology
Cascade
2 channels for cascade connection of SF-VIMOD-HUB-M2 or SF-VIMOD-HUB-2
