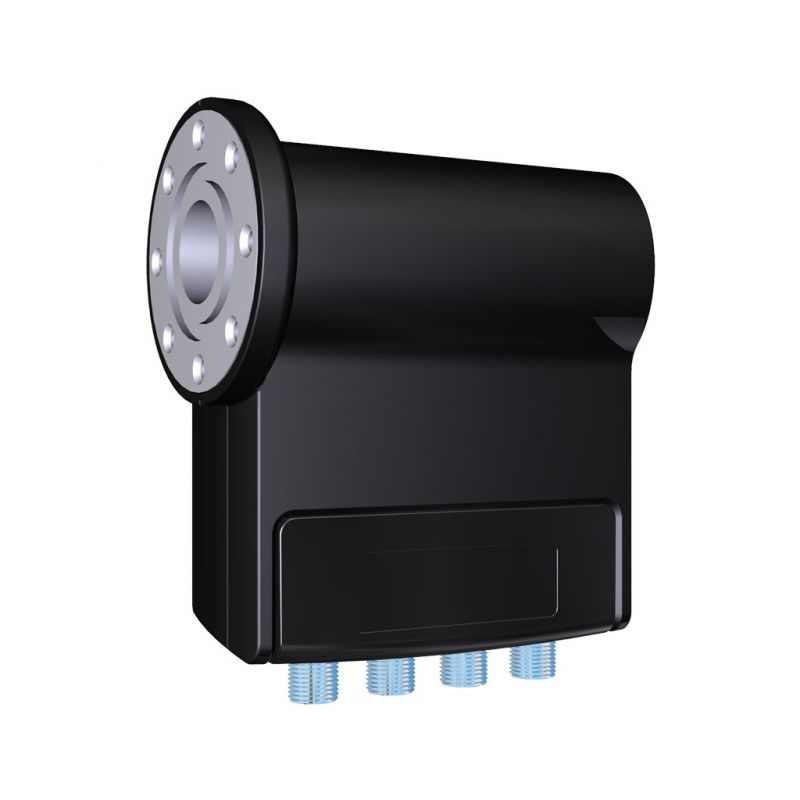

LNB Inverto Pro Quad Flange 40mm

Specifically designed for the European DTH markets, this LNB provides optimized reception capabilities. It enables the reception of signals from one satellite and its distribution to maxium four Set Top Boxes with Single Tuner (or two Set Top Boxes with Twin Tuner). It is ready for High Definition transmissions and provides excellent Noise Figure performance.

€49.90
Tax included
Reference inverto-3320
Brand Inverto
Quantity
Out-of-Stock

Free shipping

You might also like

Specifically designed for the European DTH markets, this LNB provides optimized reception capabilities. It enables the reception of signals from one satellite and its distribution to maxium four Set Top Boxes with Single Tuner (or two Set Top Boxes with Twin Tuner). It is ready for High Definition transmissions and provides excellent Noise Figure performance. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for satellite broadcast reception across Europe.

Main Features

  • Low Phase Noise, DVB-S2 (HDTV) compliant
  • Low Noise Figure
  • Low Power Consumption
  • High Cross Polarization Isolation
  • High Frequency Stability

Specs

draw

Inverto IDLB-QUDFO2-OOPRO-OPP
Low Band Input Frequency Range 10.7 ~ 11.7 GHz
Low Band Output Frequency Range 950 ~ 1950 MHz
Low Band LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7 ~ 12.75 GHz
High Band Output Frequency Range 1100 ~ 2150 MHz
High Band LO Frequency 10.6 GHz
Noise Figure 0.3 dB Typ. (0.7 dB Max.)
LO Initial Accuracy +/- 1.0 MHz Max.
LO Temperature Drift +/- 3.0 MHz Max.
Phase Noise (@ 10 kHz) - 80 dBc / Hz Max.
Conversion Gain 55 dB Min.
Gain Ripple (Over 26 MHz Bandwidth) +/- 0.75 dB
Gain Variation (Over Full Band)  +/- 4 dB Max.
Image Rejection 40 dB Min.
1 dB Compression Point (@ Output) 0.0 dBm Min.
Cross Polarization Isolation 22 dB Min.
Control Signal Ca (Vertical Polarization) 10.0 ~ 14.0 V
Control Signal Cb (Horizontal Polarization) 16.0 ~ 20.0 V
Control Signal Cc (Band Switching) 22 +/- 4 kHz
Output VSWR 2.5 : 1
In-Band Spurious - 60 dBm Max.
Current Consumption 180 mA Max. @ 11 ~ 2 0V
Operating Temperature - 30 °C  ~  + 60 °C
Output Impedance 75 Ω
Output Connector F-Type (Female)
Weight 243 g
