SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 9SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 1019 AND id_lang = 1 LNB Inverto Pro Quattro Flange
search

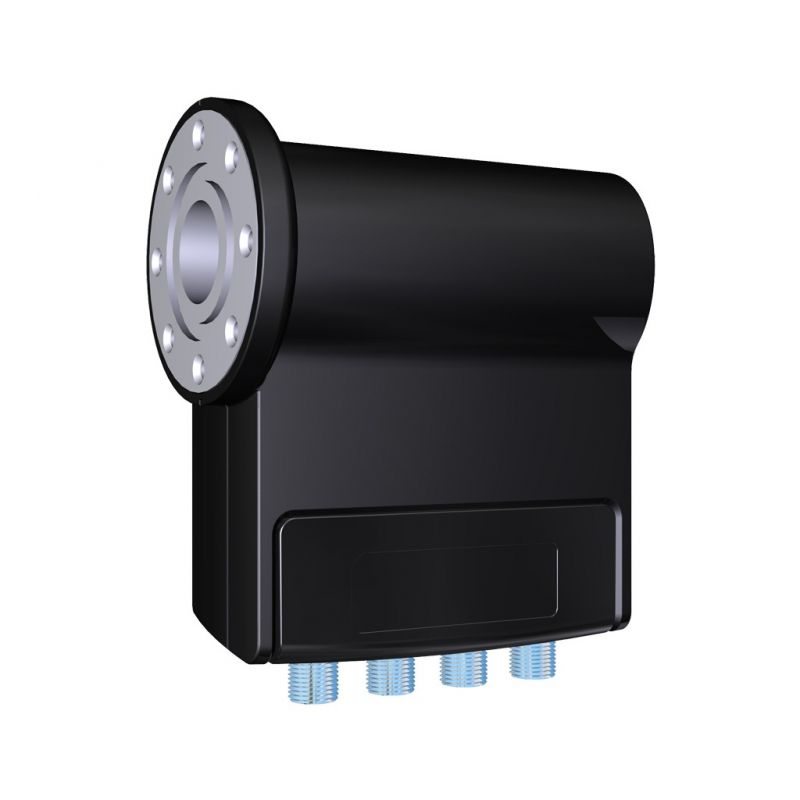

LNB Inverto Pro Quattro Flange

LNB Universal Quattro tipo FLANGE, sem guia de onda, com entrada C-120 (foco centralizado), para uso em substituição em antenas de foco principal. Ruído de fase baixo, compatível com DVB-S2 (HDTV). Baixo consumo de energia Isolamento de polarização cruzada. Estabilidade em altas frequências

€26.15
Tax included
Reference inverto-3409
Brand Inverto
Quantity
Out-of-Stock

Free shipping

Specifically designed for the European DTH markets, this LNB provides optimized reception capabilities. It enables the reception of signals from one satellite and its distribution via a Multi-Switch to numerous Set Top Boxes. It is ready for High Definition transmissions and provides excellent Noise-Figure performance. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for the satellite broadcast reception across Europe.

Features

  • Low Phase Noise, DVB-S2 (HDTV) compliant
  • Low Noise figure
  • Low Power Consumption
  • High Cross Polarization Isolation
  • High Frequency Stability

Specifications

Inverto IDLB-QUTFO1-OOPRO-OPP
Low Band Input Frequency Range 10.7 ~ 11.7 GHz
Low Band Output Frequency Range 950 ~ 1950 MHz
Low Band LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7 ~ 12.75 GHz
High Band Output Frequency Range 1100 ~ 2150 MHz
High Band LO Frequency 10.6 GHz
Noise Figure 0.3 dB Typ. (0.7 dB Max.)
LO Initial Accuracy +/- 1.0 MHz Max.
LO Temperature Drift +/- 3.0 MHz Max.
Phase Noise (@ 10 kHz) - 80 dBc / Hz Max.
Conversion Gain 55 dB Min.
Gain Ripple (Over 26 MHz Bandwidth) +/- 0.75 dB
Gain Variation (Over Full Band)  +/- 4 dB Max.
Image Rejection 40 dB Min.
1 dB Compression Point (@ Output) 0.0 dBm Min.
Cross Polarization Isolation 22 dB Min.
Output VSWR 2.5 : 1
In-Band Spurious - 60 dBm Max.
Current Consumption 200 mA Max. @ 11 ~ 20 V
Operating Temperature - 30 °C  ~  + 60 °C
Output Impedance 75 Ω
Output Connector F-Type (Female)
Weight 243 g
