Designed to protect your computer and electronic devices from fluctuations and power outages. It provides complete protection against surges and power surges in a compact size, ideal for any home or for small office applications.

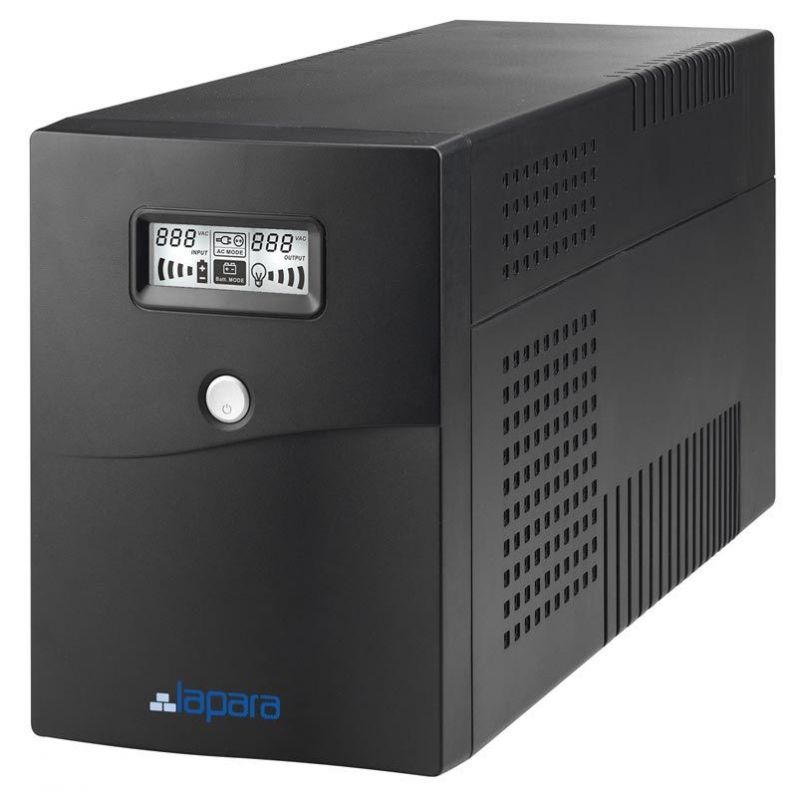

The Lapara 1500 VA Interactive UPS is equipped with a voltage stabilizer (AVR), thanks to which it supplies a stable and clean output voltage to the connected devices. Thanks to its microprocessor control, it guarantees high reliability.

Its ecological design increases its charging efficiency and reduces its time by 50%, also includes software with which you can monitor and control the status of the UPS from your PC.

Featured:

• High reliability, microprocessor controlled
• Built-in AVR to ensure voltage stability ... (did you know that to save costs some Sais manufacturers are not incorporating the AVR that is totally necessary to ensure voltage stability in the Interactive Sais? Make sure yours carries it , since if not, you are buying a device that does not protect your equipment properly)
• It restarts automatically when the power returns
• Cold start function
• Load function in OFF mode
• Simulated Sinusoidal Wave
• Compact and functional size
• LCD screen
• Communication via USB, monitoring software compatible with Windows, Linux, Unix and MAC

Capacity:

• 1500 VA / 900 W

Input:

• Voltage: 220/230/240 VAC
• Voltage range: 162-290 VAC
• Frequency range: 50/60 Hz (auto detected)

Output:

• AC voltage regulation (Battery mode): +/- 10%
• Frequency range (Battery mode): 60/50 Hz +/- 1Hz
• Transfer time: Typical 2-6 ms, 10 ms max.
• Waveform (Battery mode): Modified sine wave

Battery:

• Type of batteries: 12V / 9Ah
• Number of batteries: 2
• Typical recharge time: 4-6 hours at 90% capacity
• Autonomy time (with an estimated consumption of 120W reais): 30 min.

Indicators:

• AC mode: green LED
• Battery mode: green LED flashing

Protection:

• Overload, discharge and overvoltage protection.

Audible alarms:

• Battery mode: Sounding every 10 seconds
• Low battery: Playing every second
• Overload: Sounding every 0.5 seconds
• Battery change alarm: Sounding every 2 seconds
• Failure: Continuous Sound

Connections:

• 2 x Schuko
• 2 x IEC
• 1 x USB
• 1 x RJ11/45

Physical data:

• Dimensions: 397 x 146 x 205 mm
• Weight: 11.1 Kg

Ambient:

• Ambient conditions: 0 - 90% relative humidity / 0-40º (not condensed)
• Noise level: less than 40 db

Content:

• 1500 VA UPS (LA-VST-1500LCD)
• USB connection cable
• Control software compatible with Windows, Linux, Unix and MAC
• User manual
• Customer service guide and warranty phone
