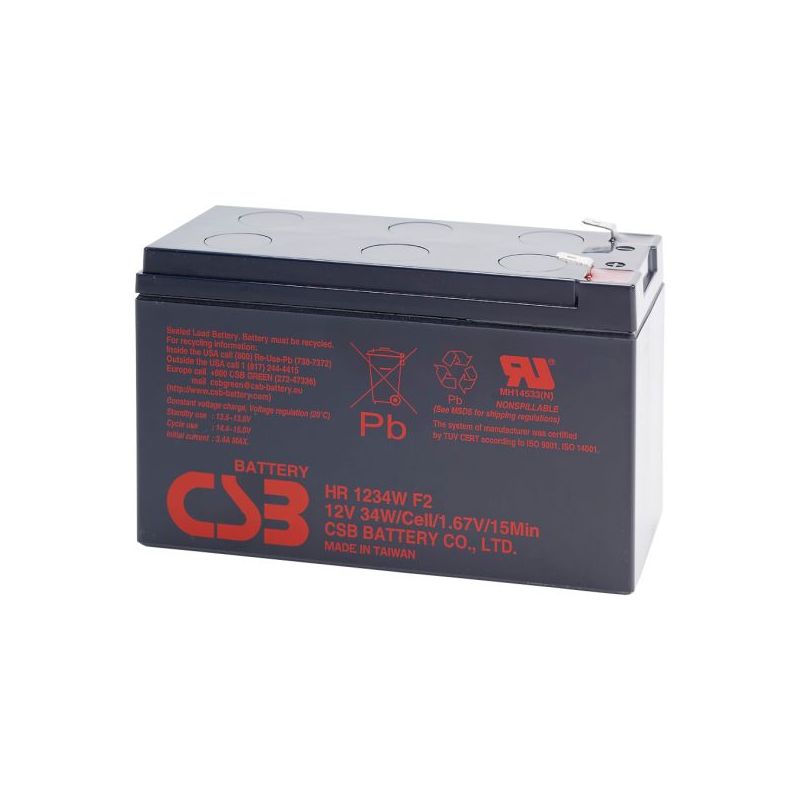

Lapara SAI battery 12V 9 Ah sealed

This is a battery capable of holding up to 5 years of standby (Standby) or more than 260 charge and discharge cycles at 100%. Its internal composition is acid and lead and being sealed batteries are capable of operating in any position without risk of leaks. Like the rest of the batteries we offer, they are rechargeable, highly efficient, leakproof and maintenance free.

Features

• AGM VRLA stationary battery
• 12V
• 9 Ah
• 65mm x 150mm x 94mm
• 2.50 Kg

* To maximize its duration, remember to fully charge the battery before its first use.

Applications

• Battery replacement for UPS or UPS
• Battery replacement for alarms, lighting and signaling

Technical data

• Cells: 6
• Voltage: 12V
• Capacity: 9 Ah @ 20hr-rate to 1.65V per cell @ 25 ° C (77 ° F)
• Weight approx: 2.50kg. (5.51 lbs.)
• Maximum discharge (A): 100A / 130A (5sec.)
• Internal resistance approx. : 19 mΩ
• Temperature range:
• Discharge ： -15 ℃ ~ 50 ℃ (5 ° F ~ 122 ° F)
• Load ： -15 ℃ ~ 40 ℃ (5 ° F ~ 104 ° F)
• Storage ： -15 ℃ ~ 40 ℃ (5 ° F ~ 104 ° F)
• Nominal temperature range: 25 ° C ± 3 ° C (77 ° F ± 5 ° F)
• Floating charge voltage: 13.5 to 13.8 VDC / unit Average at 25 ° C (77 ° F)
• Maximum recommended load limit: 3.4 A
• Equalization and duty cycle: 14.4 to 15.0 VDC / unit Average at 25 ° C (77 ° F)
• Terminal: F1 / F2-Faston Tab187 / 250
• Container material: ABS (UL94-HB / File E50263)
• Fire Resistance: (UL94-V0 / File E88637)

Downloads

data sheet
