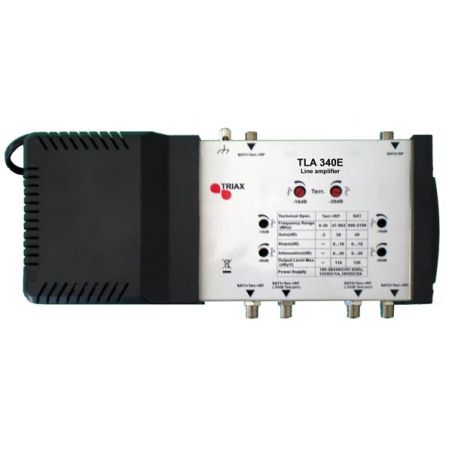

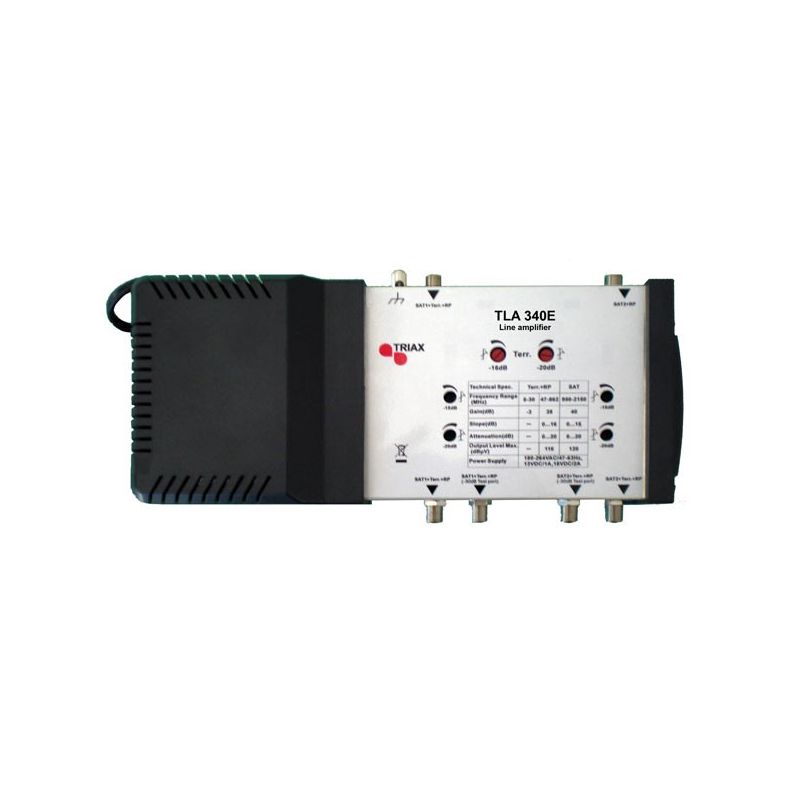

Line amplifier TLA 340E 2 sat + tdt Triax

The TLA 340E is a line amplifier for a 2-wire system with two independent SAT circuits and one common terrestrial circuit.

€289.19

Tax included

Reference triax-300386

Brand Triax

Line amplifier TLA 340E 2 sat + tdt Triax

€289.19

Description
Product Details

The TLA 340E is a line amplifier for a 2-wire system with two independent SAT circuits and one common terrestrial circuit.

Features

The SAT (FI) signals from inputs 1/2, and the terrestrial signal from input 1 are amplified and distributed to the two outputs.
The terrestrial signal of the input 2 is eliminated internally.
Each line has passive return path (5 - 30MHz)
The TLA 340E has a test output (-30 dB) on each line.
It can be used together with the THA 340E amplifier as a line amplifier.
For the reception of analog and digital signals.
Regulation of the level and equalization of the SAT and Terrestrial signals.
Metal box with plastic side supports.
"F" female type "F" input and output connectors
Meets standards EN 50083-1, -2, -3

Specifications

Type	TLA 340E
Art. N	300386
Frequency range	MHz	5-30	47-862	950 - 2400
Gain	dB	-2	38	40
Gain regulation	dB	---	0 ... 20	0 ... 20
Equalization	dB	---	0 ... 15	0 ... 15
Max. Output level (1) TERR: 60dB IMA (2) SAT: 35 dB IMA	dBμV	---	116 (1)	120 (2)
Noise Figure	dB	≤8	≤8	≤12
Decoupling Terr./CR-SAT SAT-Terr. / CR	dB	35 40
Lost of return SAT input TERR input CR input SAT output TERR input CR output	dB dB dB dB dB dB	≥8 ≥8 ≥8 ≥5 ≥6 ≥0
Supply voltage	Vac	180 ... 250
Dimensions	mm.	275 x 120 x 68
