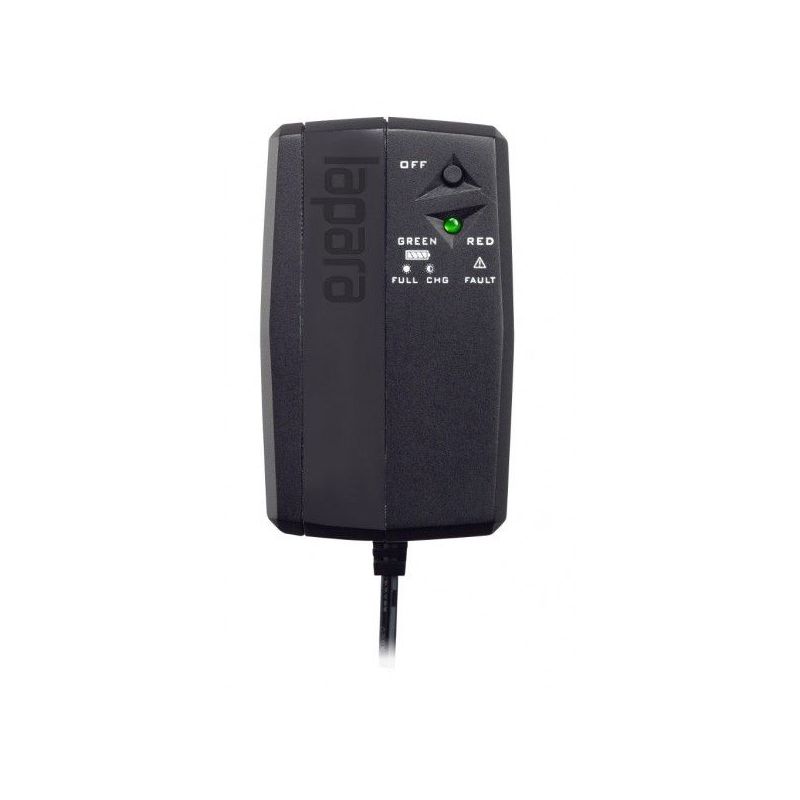

Lapara SAI DC mini 12V

The LA-ON-DC UPS is designed to provide emergency power support to all types of continuous-powered equipment such as routers, modems, decoders, VOIP telephone systems, VOIP phone systems, surveillance systems, alarm systems, alarm systems, access control and many other critical telecommunications equipment. The UPS is designed to supply electric power in case of power failure as well as to protect the devices in case of overload.

Features

• Voltage input Range 90VAC ~ 264VAC
• Frequency 50 or 60 Hz
• Voltage output Voltage 12VDC ± 5% Max.
• 25W consumption (2.1A)

Battery

• Type Battery Lithium-ion Nominal Voltage 3.7VDC
• 2600mAh capacity
• Typical charging time 3 hours for a 90% charge

Physical data

• Entrance: Schuko
• Output cable 1m long (male DC jack, DE 5.5mm, ID 2.5mm), comes with three interchangeable tips

Dimensions

• D X W X H (mm) 68 x 42 x 74
• Weight 280g

Approximate Autonomy Time

• Load Autonomy time @ 12Vdc (min)
• 12V / 1.0A Router: 150 min
• 12V / 1.5A Router: 120 min
• 120 12V / 2.0A Router: 90 min
