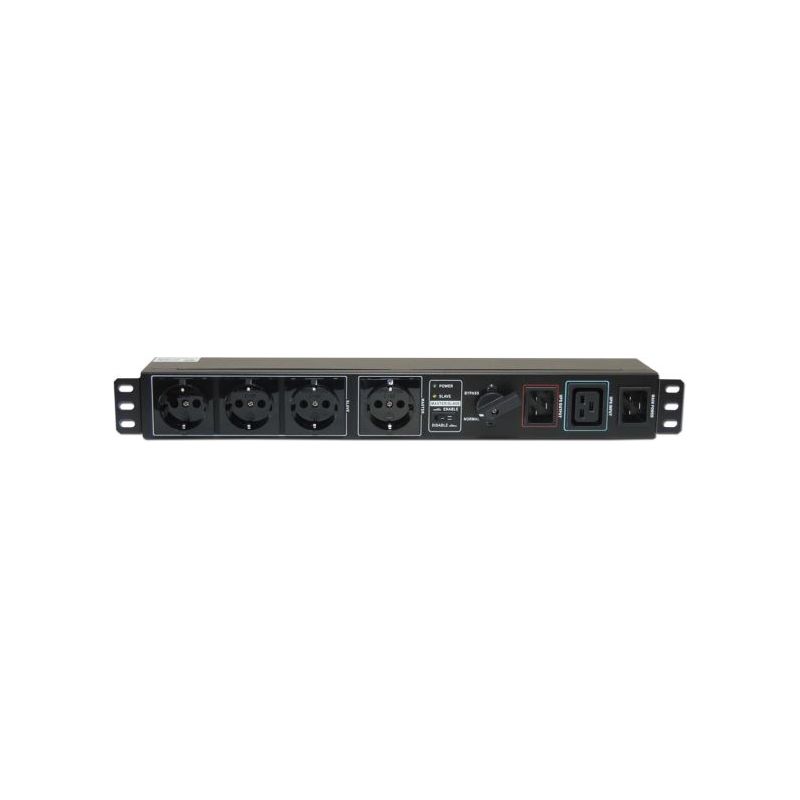

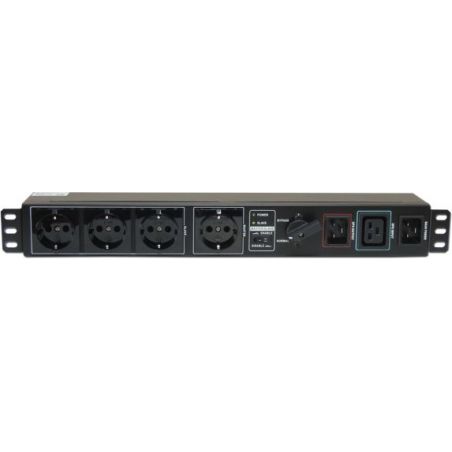

This device is used as an external power distribution unit (PDU - Poer Distribution Unit) together with a UPS system or large-scale voltage regulators. It allows you to manually transfer the equipment connected to the mains by means of a bypass switch, enabling scheduled maintenance or replacement of the UPS without interrupting the power supply of the equipment. The combination of the PDU function and a master-slave control design allows both the bypass maintenance function and a compact energy saving mechanism to be available.

Features

• 19" rack format
• 16A for voltages of 208/220/230/240VAC
• It provides uninterrupted power to the connected equipment during the maintenance operations of the UPS.
• Easy to use with a simple rotary selector and indicators.
• Master-slave function to save energy.
• Provides a number of schuko sockets for extended use.
• Suitable for any UPS up to 3KVA.

Entry

• Current Rating: 10A Max for 208/220/230/240VAC
• Input voltage range: 208/220/230/240VAC
• Master / slave function: If the load of the master socket is less than 20W (+/- 5W), the slave (auxiliary) sockets are turned off

Connection

• AC input: 1 X IEC (16A) + 1 custom cable
• UPS input: 1 X IEC (16A) + 1 IEC cable (16A-10A for SAI 1K/2K or 16A-16A for SAI 3K)
• UPS output: 1 X IEC (16A) + 1 IEC cable (16A-10A for 1K/2K UPS or 16A-16A for SAI 3K)
• Schuko output: 4 X Suchuko 16A

Physical data

• Dimensions: 80 x 438 x 50
• Weight: 1.5 kg
