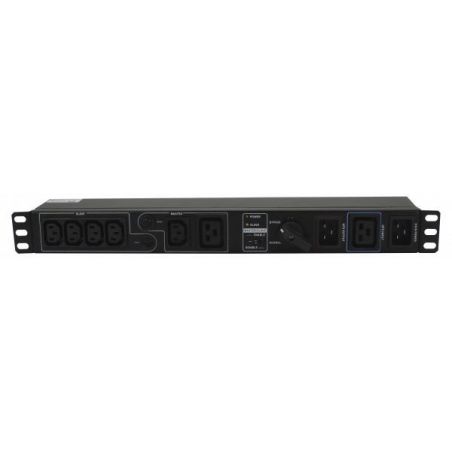

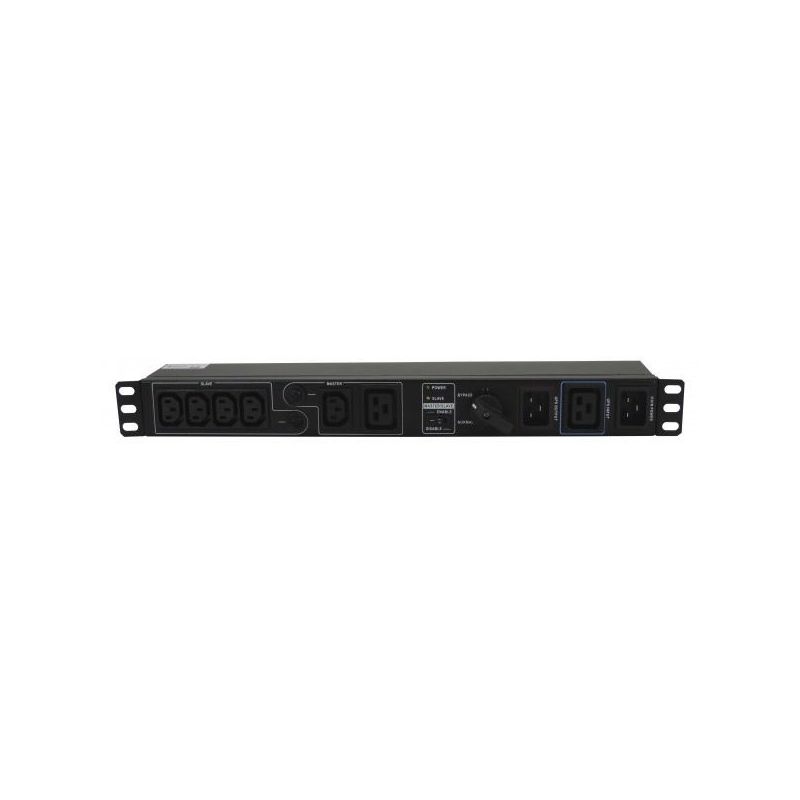

Lapara Maintenance bypass switch Rack 19" IEC strip

The maintenance bypass switch and IEC strip (up to 3K) of Lapara in rack format allows you to manually transfer the equipment connected to the power grid by means of a bypass switch, allowing the scheduled maintenance or replacement of the UPS without interrupting the power supply of the equipment.

€122.00
Tax included
Reference LA-PDU-SM-R-IEC
Brand Lapara
Quantity
Available in 24/48h

Free shipping

Lapara Maintenance bypass switch Rack 19" IEC strip

€122.00

This device is used as an external power distribution unit (PDU - Poer Distribution Unit) together with a UPS system or large-scale voltage regulators. It allows you to manually transfer the equipment connected to the mains by means of a bypass switch, enabling scheduled maintenance or replacement of the UPS without interrupting the power supply of the equipment. The combination of the PDU function and a master-slave control design allows both the bypass maintenance function and a compact energy saving mechanism to be available.

Features

  • 19" rack format
  • 16A for voltages of 208/220/230/240VAC
  • It provides uninterrupted power to the connected equipment during the maintenance operations of the UPS.
  • Easy to use with a simple rotary selector and indicators.
  • Master-slave function to save energy.
  • Provides a number of IEC sockets for extended use.
  • Suitable for any UPS up to 3KVA.

Input

  • Current Rating: 10A Max for 208/220/230/240VAC
  • Input voltage range: 208/220/230/240VAC
  • Master / slave function: If the load of the master socket is less than 20W (+/- 5W), the slave (auxiliary) sockets are turned off

Connection

  • AC input: 1 X IEC (16A) + 1 custom cable
  • UPS input: 1 X IEC (16A) + 1 IEC cable (16A-10A for SAI 1K/2K or 16A-16A for SAI 3K)
  • UPS output: 1 X IEC (16A) + 1 IEC cable (16A-10A for 1K/2K UPS or 16A-16A for SAI 3K)
  • IEC output: 5 X IEC 10A + 1 X IEC 16A (with 2 circuit breakers)

Physical data

  • Dimensions: 80 x 438 x 50
  • Weight: 1.5 kg

Downloads

data sheet
