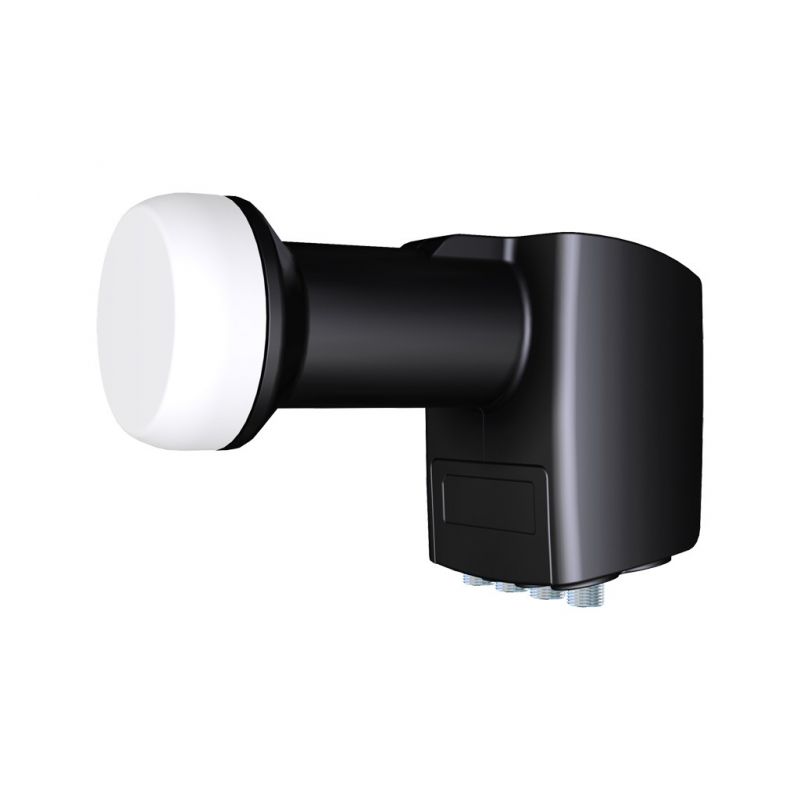

LNB Inverto Quad 40mm with Terrestrial input

With its terrestrial input this Quad LNB enables the combination of terrestrial signals (analog and digital) with the satellite signals to maximum four Set Top Boxes with Single Tuner (or two Set Top Boxes with Twin Tuner). It is ready for High Definition transmissions and provides excellent Noise Figure performance.

€56.16
Tax included
Reference inverto-3309
Brand Inverto
Quantity
Available Now

Free shipping

LNB Inverto Quad 40mm with Terrestrial input

€56.16

Specifically designed for the European DTH markets, this Quad LNB provides optimized reception capabilities. With its terrestrial input this Quad LNB enables the combination of terrestrial signals (analog and digital) with the satellite signals to maximum four Set Top Boxes with Single Tuner (or two Set Top Boxes with Twin Tuner). It is ready for High Definition transmissions and provides excellent Noise Figure performance. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for satellite broadcast reception across Europe.

Features

  • Low Phase Noise, DVB-S2 (HDTV) compliant
  • Low Noise Figure (0.2 dB)
  • Low Power Consumption
  • Very high Cross Polarization Isolation
  • Very high Frequency Stability

Specifications

Inverto IDLB-QUDL40-TERRE-OPP
Low Band Input Frequency Range 10.7~11.7 GHz
Low Band Output Frequency Range 950 ~ 1950 MHz
LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7 ~ 12.75 GHz
High Band Output Frequency Range 1100~2150 MHz
LO Frequency 10.6 GHz
Noise Figure 0.2 dB Typ. (0.7 dB Max.)
LO Initial Accuracy +/- 1.0 MHz max.
LO Temperature Drift +/- 3.0 MHz max.
Phase Noise @ 10K Hz -90 dBc / Hz Max.
Conversion Gain 55 dB Min.
Gain Ripple (Over 26 MHz Bandwidth) +/- 0.75 dB
Gain Variation (Over Full Band) +/- 4 dB
Image Rejection 40 dB Min.
1 dB Compression Point (O/P) 0.0 dBm min.
Crosspolarization Isolation 22 dB Min.
Control Signals Ca (Vertical Polarization) 10.0 ~ 14.0 V
Control Signals Cb (Horizontal Polarization) 16.0 ~ 20.0 V
Control Signals Cc (Band Switching) 22 +/- 4 kHz
Frequency Range (MATV) 40 ~ 862 MHz
Insertion Loss (MATV)  13 dB
Isolation (MATV)  18 dB
Return Loss (MATV) 10 dB
Gain Flatness (MATV) 5 dB
In-Band Spurious  - 60 dBc Max.
Output VSWR 2.5 : 1
Current Consumption 210 mA Max. @ 10 ~ 20 V
Operating Temperature - 30  ~  +60 °C
Output Impedance  75 Ω
Output Connector F-Type
Weight 234 g
