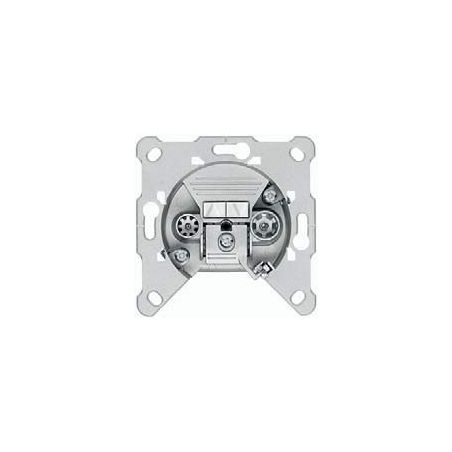

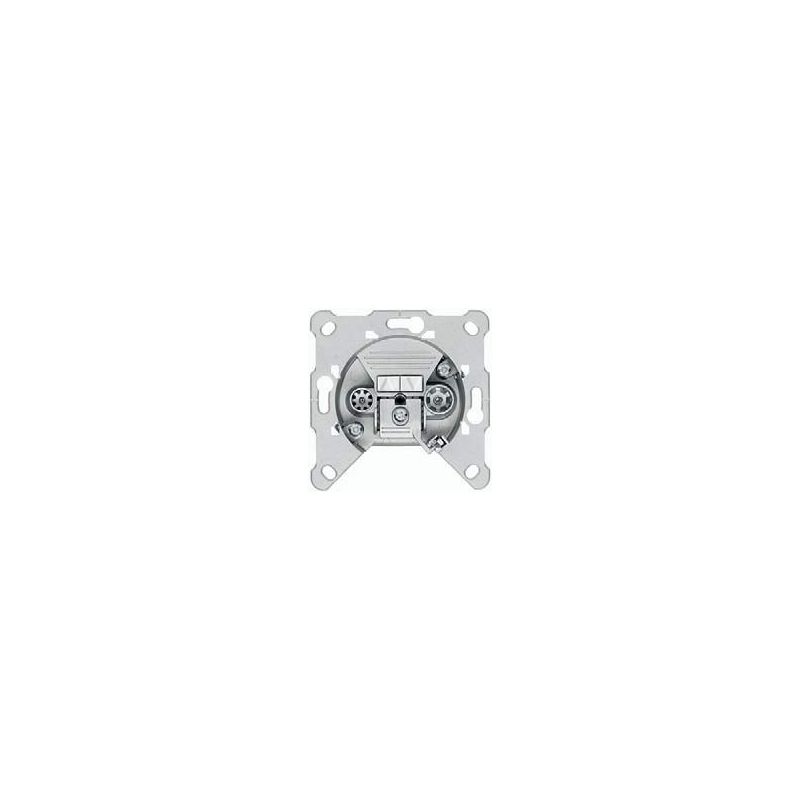

Distributor socket 20dB (5 to 2400 MHz in both inputs) Triax GEDU
2-Outlet super wide band sockets. Designed for CATV (cable TV) and SAT IF distribution. Manifold connection alternatives for the terminal equipment. Continuous CATV frequency ranges with reverse channel capability. Advantage: Flexible in application and storage. These sockets are used in the distribution of signals up to 2400 MHz.
€11.20
Tax included
Reference
triax-306213
Brand
Triax
Distributor socket 20dB (5 to 2400 MHz in both inputs) Triax GEDU
€11.20
Step-by-step for TV and SAT signals
Features
- Ideal for CATV and SAT-FI domestic distribution installations
- Low step losses
- Branch attenuation 20 dB
- Return channel
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663062139 |
| SHIELDING | |
| Shielding @ 1000...2400 MHz | ≥ 55.0 dB |
| Shielding @ 300-470 MHz | ≥ 80.0 dB |
| Shielding @ 30-300 MHz | ≥ 85.0 dB |
| Shielding @ 470-1000 MHz | ≥ 75.0 dB |
| CHARACTERISTICS | |
| Outlet Type | Loop through |
| FREQUENCY | |
| Frequency Range IN-OUT | 5...2150 (2400) MHz |
| Frequency Range RF | 5...2150 (2400) MHz |
| Frequency Range TV | 5...2150 (2400) MHz |
| LOSS | |
| Through Loss IN-OUT @SAT | 1.4 ±0.4 dB |
| Through Loss IN-OUT | 0.8 ±0.4 dB |
| Through Loss IN-RF | 20.0 dB |
| Through Loss IN-TV | 20.0 dB |
| ISOLATION | |
| Isolation OUT-FM | 40.0 dB |
| Isolation OUT-TV | 40.0 dB |
| Isolation TV-FM | >24.0 dB |
| RETURN LOSS | |
| Return Loss FM | 15.0 dB |
| Return Loss IN | 19.0 dB |
| Return Loss OUT | 20.0 dB |
| Return Loss TV | 15.0 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Screening Efficiency | EN50083-2 (Class A) |
| Operating temperature range | -25...+55 °C |
| MTBF (mean time between failures) | >1.000.000 hours |
| Temperature - shipping | -40...+70 °C |
| Temperature - storage | -25...+55 °C |
| CONNECTORS | |
| Adaptable Cable Diameters - Inner Conductor | 0.58...1.15 mm |
| Adaptable Cable Diameters - F-female | 0.6...1.13 mm |
| Adaptable Cable Diameters- Jacket | 4.5...7.2 mm |
| Adaptable Cable Diameters - Outer Conductor | 3.7...5.8 mm |
| Connector type data | F-female (IEC 60 169-24) |
| Connector IN-OUT | Spring Clamp Termination |
| Connector RF | IEC-female |
| Connector TV | IEC-male |
| MECHANICAL | |
| Main Material | Zinc die-cast |
| Dimensions product (H x D x W) | 70.6 x 70.6 x 21.9 mm |
| Packaging Depth | 0,071 m |
| Packaging Height | 0,035 m |
| Total Weight | 0,105 kg |
| Packaging Width | 0,071 m |
| Net Weight | 0,096 kg |
| Packing QTY | 10 |
| Remarks | Wideband socket box with Sat IF range. Continuous frequency ranges 5 to 2400 MHz on both outlets (universal socket box). Advantage: Upgrading or retrofitting of the wideband house network with direct satellite reception always possible. |
| Tara Weight | 0,009 kg |
| Tensile Strength - Inner Conductor 2 (Ø) | > 50 @ 1.13mm N/mm2 |
| Tensile Strength - Inner Conductor 1 (Ø) | > 25 @ 0.75mm N/mm2 |
