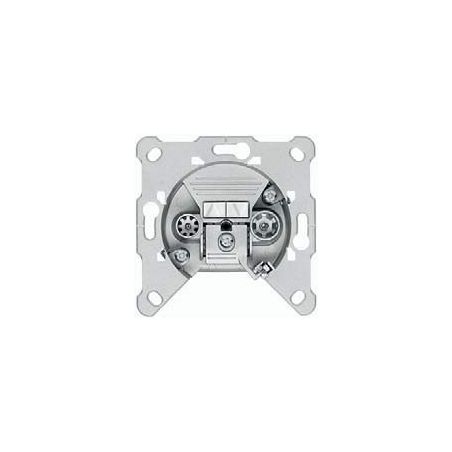

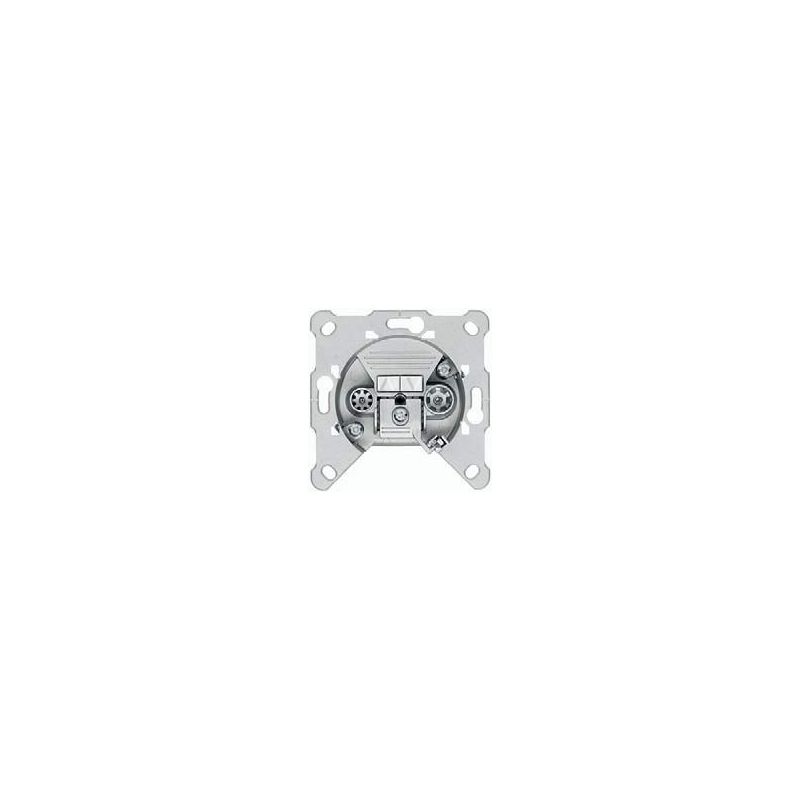

Triax GDS 11dB separator socket (5 to 2400 MHz on both inputs). With current bypass

These jacks are used in the distribution of signals up to 2400 MHz.

€10.81
Tax included
Reference triax-306232
Brand Triax
Quantity
Available Now

Free shipping

Triax GDS 11dB separator socket (5 to 2400 MHz on both inputs). With current bypass

€10.81

Triax GDS 11dB separator socket (5 to 2400 MHz on both inputs). With current flow

SAT sockets with filter are part of the new generation of hirschmann sockets:

  • Smart terminal lock
  • Quick and easy assembly
  • Excellent electrical parameters
  • Absolutely reliable and durable - "Made in Germany"

Special features of the GDS:

  • Double output, especially for use in multiswitch systems, single cable solution for SAT-TERRESTRIAL installations
  • Very low losses in distribution by means of dividing the frequency bands through filters
  • 2 outputs, one for Sat (F female) and one for TV / RF (IEC male)
  • Remote power + DiSEqC on TV output, on the other, direct "F" connection to satellite receiver
  • According to:
  • RoHS
  • EN 50083-2 (class A)
  • EN 50083-4 (measurement methods)

Pass-through for single-cable solutions and satellite distributions

Specifications

Model GDS 11 F
Application Step shot
  Rango de frecuencia  |  Atenuación
Frenquency range | Attenuation  5 to 2150 (2400) MHz  |   1.0 - 1.8 (2.6) dB
Input - IEC male 5 to 862 MHz  |  11.0 dB
Input - IEC female 950 - 2150 (2400) MHz  |  11.5 dB
Isolation
Outputs- TV/RF VHF, UHF / SAT  |  30/20 dB
TV - RF VHF, UHF / SAT  |  25/18 dB
Current bypass 13/18V, 22 kHz;max. +24V/0.5 A
SAT -> In.; In-out.
