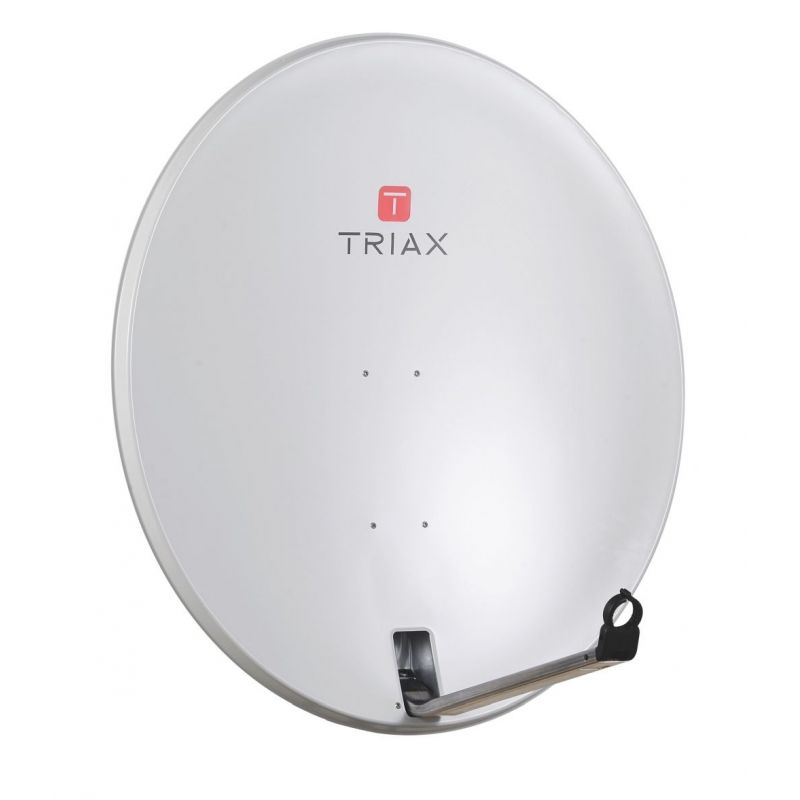

Triax TDS88 Galvanized steel parabolic antenna 90cm

Galvanized steel parabolic antenna of high strength 90cm, semi-professional.

€90.75
Tax included
Reference triax-120821
Brand Triax
Quantity
Out-of-Stock

Free shipping

This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here

All Triax dishes are manufactured in galv. steel and are supplied with mounting kit and TRIAX logo on the reflector.

Main features

  • Size (height) 88cm
  • Colour - RAL 7035
  • Acc. bags - 6-edge flange nut with 1 or 2 mastclamps depending on dish size
  • Packaging: Single pack

Technical specifications

ORDER INFORMATION
EAN Number 5702661208218
CHARACTERISTICS
Elevation range 10-60º
G/T LNB 0.7 19.2 dB/K
Offset angle 26º
Type TD 88
X-polarisation >27 dB
FREQUENCY
Frequency range 10.7 - 12.75 GHz
GAIN
Gain @ 11.7 GHz 38.8 dBi
MECHANICAL
Arm colour raw
Back structure colour raw
Beamwidth 2.0º
Colour RAL 7035
Dimensions carton (H x D x W) 937 x 942 x 150 mm
Dish colour RAL 7035
Finish Polyester powder coat
Packaging Depth 0,937 m
Packaging Height 0,150 m
Total Weight 7,000 kg
Packaging Width 0,942 m
LNB holder 23-40mm / Black
Mast bracket diameter <60 mm
Main Material Galvanized Steel
Net Weight 5,800 kg
Packing QTY 1
Reflector type Offset
Remarks Singlepacked
Tara Weight 1,200 kg
Packaging Volume 0,132 m3
Width (cm) 85 cm
Windload @ 42 m/s 902 N
Height (cm) 95 cm
