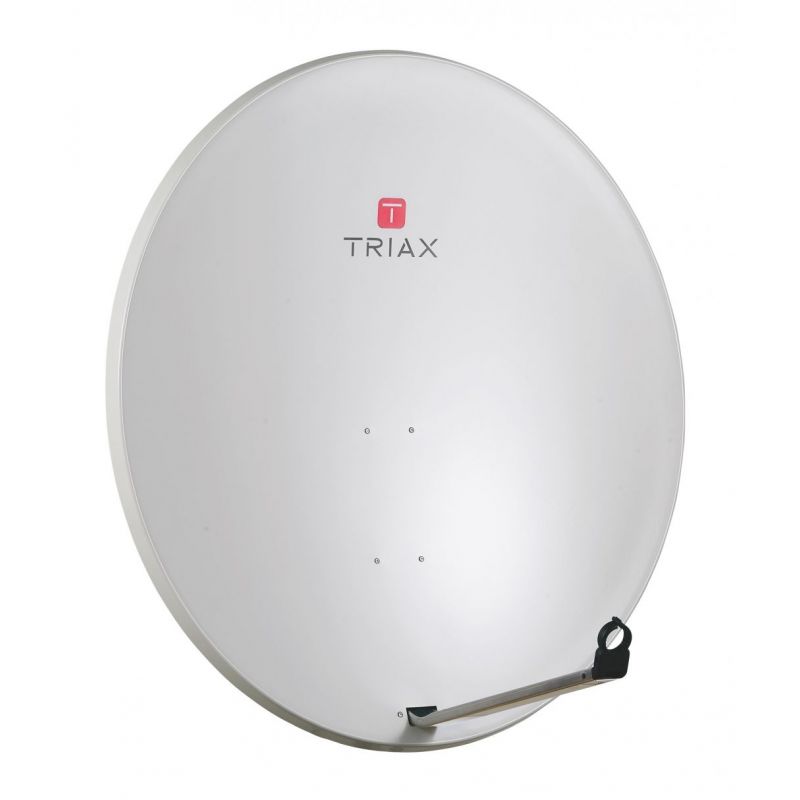

Triax TDS110 Galvanized steel parabolic antenna 110 cm
Galvanized steel parabolic antenna of high strength 78cm, semi-professional.
€172.40
Tax included
Reference
triax-120121
Brand
Triax
Triax TDS110 Galvanized steel parabolic antenna 110 cm
€172.40
This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here
All Triax dishes are manufactured in galv. steel and are supplied with mounting kit and TRIAX logo on the reflector.
Main features
- Size (height) 110cm
- Colour - RAL 7035
- Acc. bags - 6-edge flange nut with 1 or 2 mastclamps depending on dish size
- Packaging: Single pack
Technical specifications
| ORDER INFORMATION | |
| EAN Number | 5702661201219 |
| CHARACTERISTICS | |
| Elevation range | 10-60º |
| G/T LNB 0.7 | 20.6 dB/K |
| Offset angle | 26º |
| Type | TD 110 |
| X-polarisation | >27 dB |
| FREQUENCY | |
| Frequency range | 10.7 - 12.75 GHz |
| GAIN | |
| Gain @ 11.7 GHz | 40.2 dBi |
| MECHANICAL | |
| Arm colour | raw |
| Back structure colour | raw |
| Beamwidth | 1.8º |
| Colour | RAL 7035 |
| Dimensions carton (H x D x W) | 1195 x 1070 x 155 mm |
| Dish colour | RAL 7035 |
| Finish | Polyester powder coat |
| Packaging Depth | 1,195 m |
| Packaging Height | 0,155 m |
| Total Weight | 11,400 kg |
| Packaging Width | 1,070 m |
| LNB holder | 23-40mm / Black |
| Mast bracket diameter | <60 mm |
| Main Material | Galvanized Steel |
| Net Weight | 8,900 kg |
| Packing QTY | 1 |
| Reflector type | Offset |
| Remarks | Singlepacked |
| Tara Weight | 2,500 kg |
| Packaging Volume | 0,198 m3 |
| Width (cm) | 100 cm |
| Windload @ 42 m/s | 1222 N |
| Height (cm) | 105 cm |
