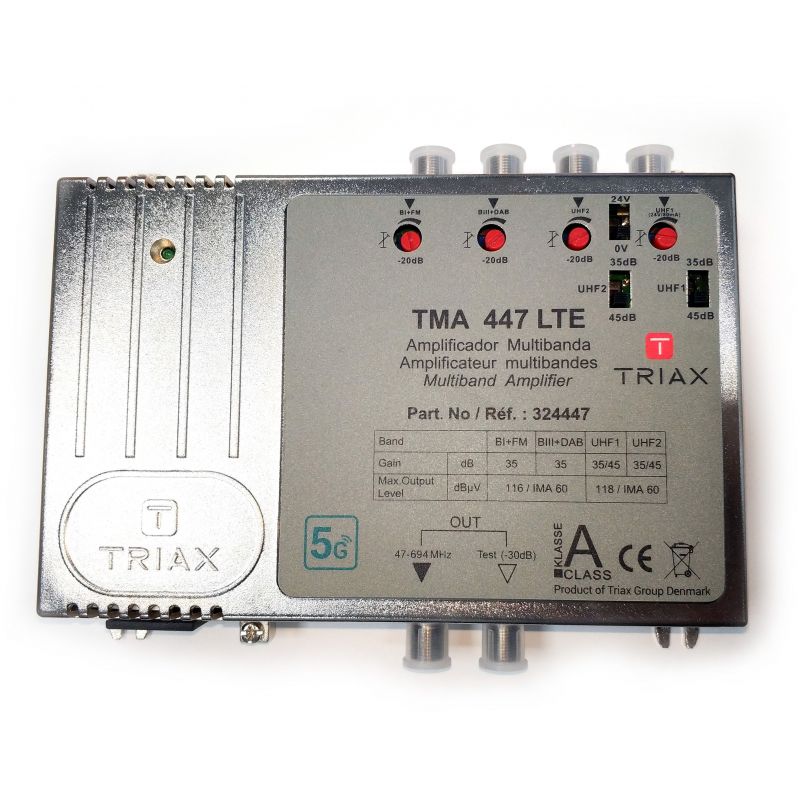

Triax TMA 447 LTE 5G Central 5 inputs / 1 output

TMA 447 LTE 5G 700 Mhz. 1 FM input, 1 DAB input, 2 UHF inputs. FM amplification: 30 dB - DAB: 35 dB - UHF: 35/45 dB (Switchable). Output level: 118 dBμV (IMA 60). Power supply for priors: 24 Vdc / 80 mA. (for UHF 1).

€169.33
Tax included
Reference triax-324447
Brand Triax
Quantity
Available Now

Free shipping

Triax TMA 447 LTE 5G Central 5 inputs / 1 output

€169.33

The new generation of TMA 447 LTE 5G multiband amplifiers has an LTE filter (47-694 MHz) and adapts to all your network needs and needs, thanks to its low price, high technology and high performance. The entire range of new amplifiers, optimized for distribution in small and medium communities, will convince you with its excellent amplification quality, cost efficiency and simplicity of use and installation.

The TMA 447 LTE 5G is a multiband amplifier for small TV and Radio signal distribution networks. Compatible for analog and digital signals. It has four RF inputs (BI + FM; BIII + DAB; UHF1 and UHF2) and 1 output with separate amplification.

Features

  • ZAMAK housing
  • Separate amplification
  • Low noise figure
  • Switchable gain 35/45 dB at UHF inputs (470 - 694 MHz)
  • Output level 118 dBμV
  • 24 Vdc power supply to preamps through the UHF1 input
  • Exit Test Point
  • Mains supply 220 ± 10 Vac
  • Low consumption

Mounting

  • Mounting on flat surfaces with suitable screws and in a properly ventilated place.
  • Mount the "F" connector on the cable, taking into account the minimum radius of curvature.
  • Make the connections to the TMA 447 LTE and tighten the connectors.
  • If the installation requires a mast amplifier to be installed, the supply voltage (24Vdc) will be carried out via cable through the UHF1 input.
  • Adjust the optimum input level to each of the inputs.
  • Set the desired output level using the level adjustment.

Specifications

Type  TMA 447 LTE 5G
Art. no 324447
BI+FM BIII+DAB UHF1 UHF2
Gain  dB 30 35 35/45 Switch 35/45 Switch
Gain regulation dB 20 20 20 20
Max. Output level dBμV 116 116 118 118
Noise figure dB >6 >6 >7 >7
Return losses  dB >12
Decoupling between inputs dB >35
Previous power Vdc/mA --- --- 24/80 ---
Power supply Vac/Hz 220 ± 10/50Hz
Measures mm 172 x 112 x 42
