SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 22SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 11490 AND id_lang = 1 Triax TMA 547 LTE 5G Central 5 inputs / 1 output
search

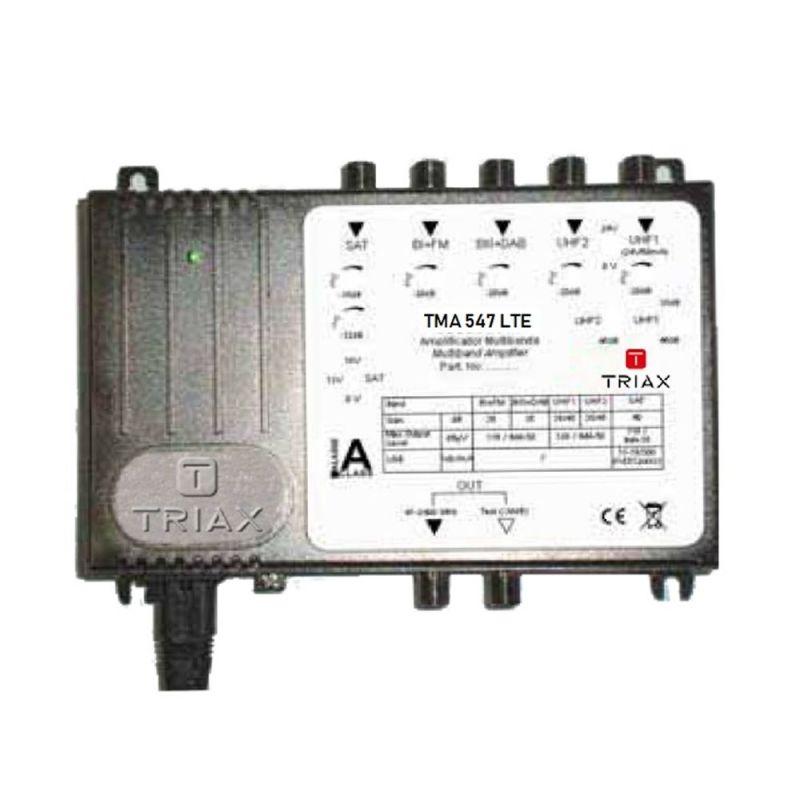

Triax TMA 547 LTE 5G Central 5 inputs / 1 output

1 FM input, 1 DAB input, 2 UHF inputs and 1 FI input. FM amplification: 30 dB - DAB: 35 dB - UHF: 35/45 dB (Switchable) FI amplification: 40 dB. SAT output level 118 dBμV (IMA 35). Output level Terr .: 118 dBμV (IMA 60). Power supply for priors: 24 Vdc / 80 mA. (for UHF 1). Power supply for LNB: 0/13/18 Vdc. 300 mA and 0/22 kHz or possibility of current passing from the STB.

€180.81
Tax included
Reference triax-324547
Brand Triax
Quantity
Available Now

Free shipping

Triax TMA 547 LTE 5G Central 5 inputs / 1 output

€180.81

TMA 547 LTE. Multiband Terrestrial + Satellite Amplifier.

  • 1 FM input, 1 DAB input, 2 UHF inputs and 1 FI input
  • FM amplification: 30 dB - DAB: 35 dB - UHF: 35/45 dB (Switchable)
  • FI amplification: 40 dB
  • SAT output level 118 dBμV (IMA 35)
  • Output level Terr .: 118 dBμV (IMA 60)
  • Power supply for priors: 24 Vdc / 80 mA. (by UHF 1)
  • Power supply for LNB: 0/13/18 Vdc. 300 mA and 0/22 kHz or possibility of current passing from the STB
  • It allows selective amplification of different frequency bands.
  • UHF bandwidth limited to 790MHz to reject frec. LTE
  • Inputs provided with 0-20 dB attenuator.
  • Test point for control of the output signals without interrupting the service.
  • UHF input with remote switchable power for preamp.
