WDL Ku-Band LNB type E Low and high band simultaneously

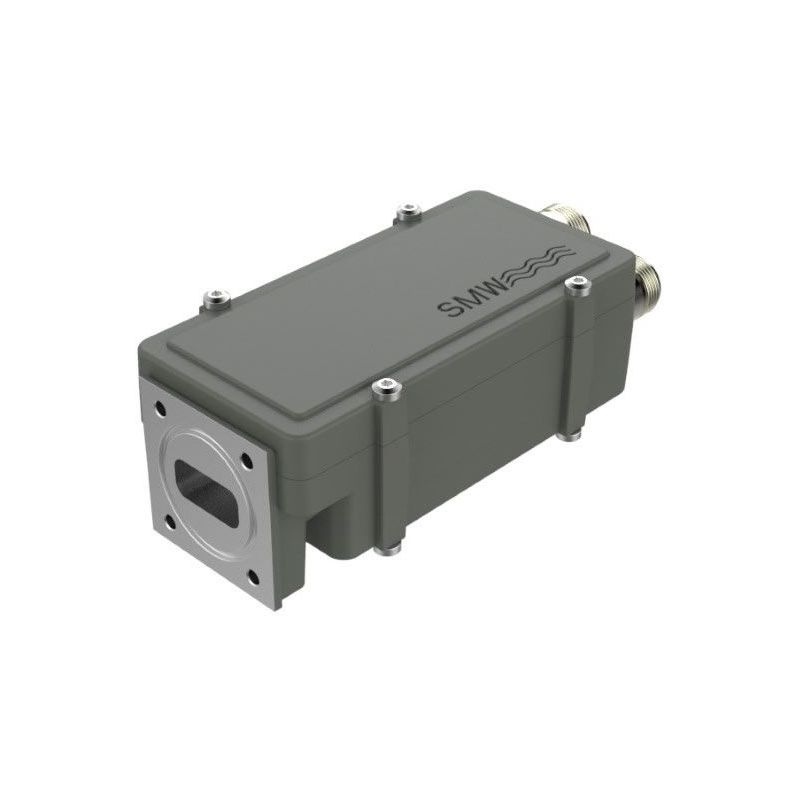

The WDL-PLL LNB type E supports receiving a full range of Ku band frequencies simultaneously with 2 LO for low and high band outputs. The WDL-PLL LNB is ideal for installation in various professional applications with low-speed symbol carriers.

€1,815.00
Tax included
Reference SMW-WDL-PLL
Brand SMW
Quantity
Available in 24/48h

Free shipping

WDL Ku-Band LNB type E Low and high band simultaneously

€1,815.00

The WDL-PLL LNB type E supports receiving a full range of Ku band frequencies simultaneously with 2 LO for low and high band outputs. The WDL-PLL LNB is ideal for installation in various professional applications with low-speed symbol carriers.

Features

  • Full Ku-Band coverage.
  • Low phase noise to meet the Broadcast profile of DVB-S2, optional ultra-low phase noise model meets all profiles of DVB-S2X and also recommended for NS4 modulation.
  • High P1dB and IP3.
  • Choose between Internal Ref. or External Ref. input models.
  • Compact size and light weight.
  • Wide operating temperature range.
  • Low gain option.

Specifications

Type (LO's) E 9.75 & 10.60 GHz, B 10.00 & 10.75 GHz
LO Stability ±1 ppm -20 to +70ºC (±1,5 ppm -40 to +80ºC), ±0,5 ppm -20 to +70ºC (±1,0 ppm -40 to +80ºC), ext. 10 MHz ref
Output connnectors N-connectors, F-connectors, SMA-connectors
Option Low band 10.95-11.80 GHz (extended), N/A
Low gain (option) 50 dB max, 52 dB typ, 40 dB typ, N/A
Ultra Low Phase Noise N/A, ULPN

Drawing

Downloads

data sheet
