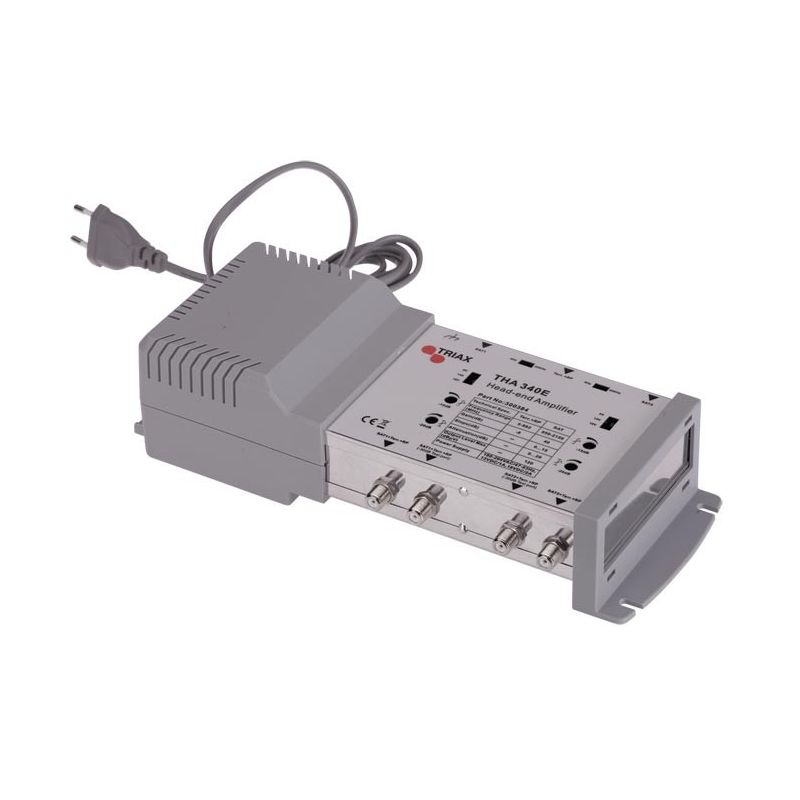

Triax THA 340E - Central Amplifier 2 inputs/2 outputs

The THA 340E is a head amplifier for a 2-wire system with two independent SAT circuits + passive terrestrial input signal.

€350.90
Tax included
Reference triax-300384
Brand Triax
Quantity
In Stock

Free shipping

Triax THA 340E - Central Amplifier 2 inputs/2 outputs

€350.90

The THA 340E is a head amplifier for a 2-wire system with two independent SAT circuits.

Features

  • The SAT (FI) signals from the 1/2 inputs, and the passive terrestrial signal from the Terr + CR input are amplified and distributed to the two outputs.
  • The terrestrial line has a return path (5 - 30MHz)
  • The THA 340E has a test output (-30 dB) on each line.
  • For the reception of analog and digital signals.
  • Power to the selectable LNB 0 - 13 - 18 Vdc.
  • Tone generator 0-22 kHz · Level regulation and equalization of SAT signals.
  • Metal box with plastic side supports.
  • Input and output type "F" female connectors.
  • Meets standards EN 50083-1, -2, -3

Specifications

ORDER INFORMATION
EAN Number 5702663003842
CHARACTERISTICS
LNB current max. 300 mA
Switching 0/22 kHz
Max. output level SAT @ -35 dB IMD3 120 dBµV
FREQUENCY
Frequency range SAT 950-2150 MHz
GAIN
Gain - SAT (with 5 dB slope) 40 dB
Gain - TER [47-862 MHz] -8 dB
Noise figure SAT 10 dB
LOSS
Adjustable attenuator SAT 0-20 (on each SAT input) dB
Equalization SAT 0-20 (on each sat input)
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
Temperature range 0...+55 °C
AC Supply voltage 180...240 VAC
Temperature - operating 0...55 °C
CONNECTORS
Number of trunk outputs 2 (SAT + ter)
Number of inputs 2x SAT, 1x TER
Connector Type F-female
MECHANICAL
Packaging Height 0.085 m
Packaging Width 0.140 m
Packaging Depth 0.305 m
Packaging Volume 0.004 m3
Net Weight 0.822 kg
Tara Weight 0.182 kg
Total Weight 1 kg
Remarks Product is optimised for operation in Spain
