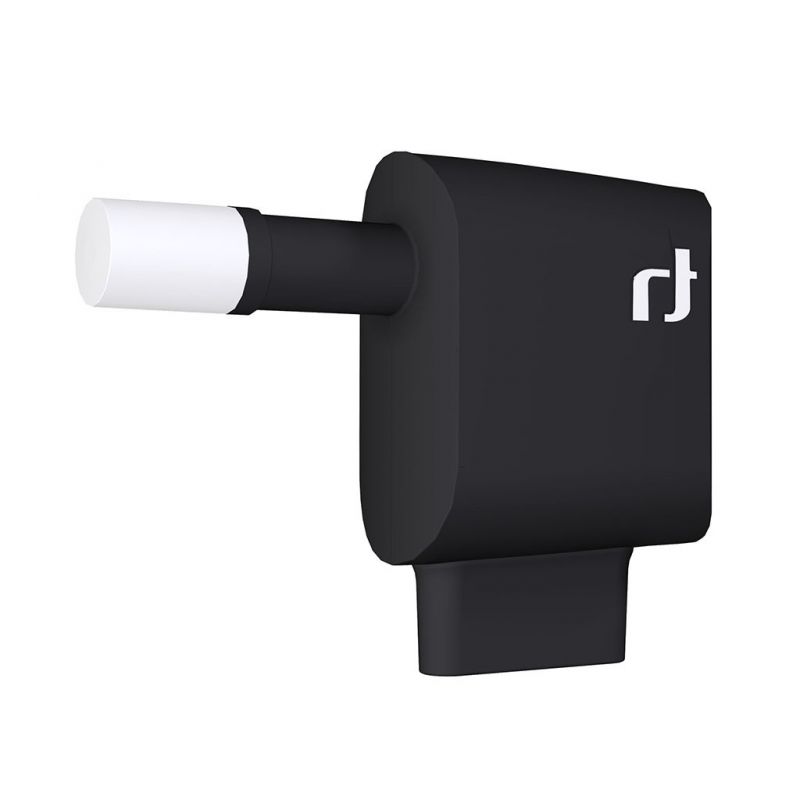

LNB Inverto Multiconnect Dielectric Quad 23mm

Specifically designed for use in receptions of multiple satellites from a single satellite dish. Its novel waveguide ensures maximum energy transfer from the disk to the LNB even when the latter is out of its optimal focal position.

€30.13
Tax included
Reference inverto-3627
Brand Inverto
Quantity
Available Now

Free shipping

LNB Inverto Multiconnect Dielectric Quad 23mm

€30.13

This innovative LNB was specifically designed for installations that make use of several LNBs on a satellite dish antenna. Its novel slim feed technology incorporates advanced dielectric materials and a perfect front end design. This technology ensures maximum energy transfer from the dish to the LNB circuits also when the LNB position is off the focal point. Furthermore, its long neck allows placing the LNBs closely next to each other and gain access to satellites typically too close in their orbital positions to be received with standard neck LNBs on a standard satellite dish antenna. The LNB enables the reception of signals from one satellite and its distribution to maximum four Set Top Boxes with Single Tuner (or two STBs with Twin Tuner).

Features

  • Novel Slim Feed Technology
  • Low Phase Noise, DVB-S2 (HDTV) compliant
  • Low Noise Figure
  • Low Power Consumption
  • High Cross Polarization Isolation High Frequency Stability

Specifications

Inverto IDLB-QUDL24-MULTI-OPP
Low Band Input Frequency Range 10.7 ~ 11.7 GHz
Low Band Output Frequency Range 950 ~ 1950 MHz
Low Band LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7 ~ 12.75 GHz
High Band Output Frequency Range 1100 ~ 2150 MHz
High Band LO Frequency 10.6 GHz
Noise Figure 0.2 dB Typ. (0.7 dB Max.)
LO Initial Accuracy +/- 1.0 MHz Max.
LO Temperature Drift +/- 3.0 MHz Max.
Phase Noise (@ 10 kHz) - 90 dBc / Hz Max.
Conversion Gain 60 dB Min.
Gain Ripple (Over 26 MHz Bandwidth) +/- 0.75 dB
Gain Variation (Over Full Band) +/- 4 dB Max.
Image Rejection 40 dB Min.
1 dB Compression Point (@ Output) 0.0 dBm Min.
Cross Polarization Isolation 22 dB Min.
Control Signal Ca (Vertical Polarization) 11.0 ~ 14.0 V
Control Signal Cb (Horizontal Polarization) 16.0 ~ 20.0 V
Control Signal Cc (Band Switching) 22 +/- 4 kHz
Output VSWR 2.0 : 1
In-Band Spurious - 60 dBm Max.
Current Consumption 200 mA Max. @ 11 ~ 20 V
Operating Temperature - 30 °C ~ + 60 °C
Output Impedance 75 Ω
Output Connector F-Type (Female)
Weight 344 g
