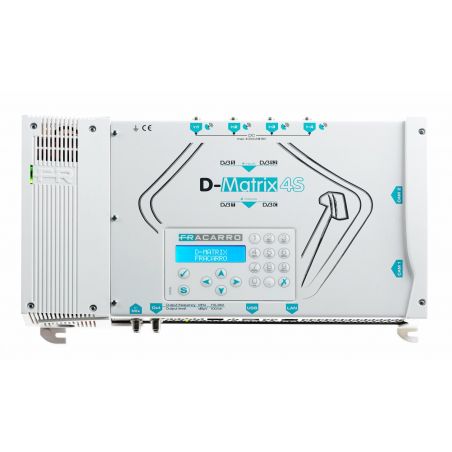

Fracarro D-MATRIX-4S Converter SAT/TDT QUAD DVBS/S2 to 2 Outputs DVBT/C - 2 slot C.I + USB Player

Fracarro D-MATRIX-4S professional HD / SD modulator with four DVB-S2 inputs, two DVBT / C outputs, 2 C.I. and USB player.

€3,158.10
Tax included
Reference fracarro-D-MATRIX-4S
Brand Fracarro
Quantity
Available in 24/48h

Free shipping

Fracarro D-MATRIX-4S Converter SAT/TDT QUAD DVBS/S2 to 2 Outputs DVBT/C - 2 slot C.I + USB Player

€3,158.10

Fracarro D-MATRIX-4S professional HD / SD modulator with four DVB-S2 inputs, two DVBT / C outputs, 2 C.I. and USB player.

The new family of compact D-Matrix products presents a revolutionary concept: a single product is capable of receiving up to 4 different satellite transponders, independent re-formulating programs in HD or SD 2 digital multiplex (COFDM or QAM) available in production, freely programmable in television frequencies. In addition, thanks to the 2 universal slots for common interface that D-Matrix-4S is equipped with, you can decrypt the desired programs using the appropriate professional CAM and the smart card (not supplied with the control panel). The ability to create two digital multiplexes "ad-hoc" gives the installer the flexibility to choose content that is distributed free of charge. D-MATRIX-4S offers the possibility of completely managing both the parameters of both digital multiplexes that the individual programs (LCN, SID, DPDS, NIT, ...).

NEW: Ability to play audio and video content (movies or presentations) through USB.

Features

Multiple Inputs / Outputs:

4 independent satellite inputs (DVB-S2), 2 independent DVB-T / DVB-C outputs. 2 common IC interface slots.

Mux-a-Hoc:

Possibility to create your own mux as desired with the chosen programs from 4 independent satellite sources and manage all the parameters of the individual descriptor programs (LCN, SID, PID, program name ..) and MUX (ONID, TSID, NetID , ...).

ARP 2.0:

Procedures for automatic recovery and help to safeguard programs with higher priority and ensure continuity of service, when the input data flow is higher than the amount allowed by DVB-T or DVB-C (bit-rate overflow) takes everything to the initial configuration when the total bit rate is within the parameters.

Auto reassignment functionality:

Ability to change channels in real time to be distributed without having to re-tune your television.

Interfaces

Includes programming WEB interface and basic keyboard and screen interface.

USB port

Includes multifunction USB port for loading and saving existing configurations, for firmware update and for video playback (TS compatible file format).

"Agile" modulation output

Supports "agile" Modulation DVB-T / DVB-C selectable during programming: a single product complies with any coaxial distribution!

Specifications

General
Rango de frecuencia de entrada 47÷862 MHz
Pérdida de inserción de entrada 2.5 dB
Voltaje de alimentación 184-264 V AC, 50/60 Hz
Consumo máximo 42 W (con 2 CAM inserite)
Conectores

F-Hembra (RF), RJ45, USB
Common Interface 2 x PCMCIA (Standard EN50221, TS10169)
Dimensiones (L × A × P) 360 × 225 × 60 mm
Temperatura de funcionamiento -5 ÷ +55
Estandares de conformidad EN50083-2, EN60065
Front-End
Nº de entradas 4
Frecuencia de entrada 950 - 2150 MHz
Nivel de entrada RF 50 - 80 dBμV
Paso de sintonía en la entrada 1MHz
DiSEqC 0/14/18VDC, 0/22KHz, DiSEqC 1.0
Demodulación DVB-S2 (8-PSK, QPSK), DVB-S (QPSK)
FEC 1/2, 2/3, 3/4, 5/6, 7/8, AUTO
Symbol rate 2 - 45 MS/sec (DVB-S/ DVB-S2)
AFC Range -5 - +5MHz
Modulación de salida 1
Standard de transmisión DVB-T
Bandwidth 6, 7, 8 MHz
Portadores disponibles 2k, 8k
Modulación QPSK, 16-QAM, 64-QAM
Intervalo de Guarda 1/4, 1/8, 1/16, 1/32
FEC 1/2, 2/3, 3/4, 5/6, 7/8
Symbol Rate -
Espectro Normal / Invertido
Modo de funcionamiento Normal / Carrier Individual
Modulación de salida 2
Standard de transmisión DVB-C
Bandwidth Depende del conjunto de salida
Portadores disponibles -
Modulación 16QAM, 32 QAM, 64QAM, 128QAM,256QAM
Intervalo de Guarda -
FEC Reed Solomon (204, 188)
Symbol Rate 1000 to 6999
Espectro Normal / Invertido
Modo de funcionamiento Normal / Carrier Individual
Salida de RF
Frecuencia de salida 111 - 862 MHz
Canales de salida S2 - E69
Paso de sintonización de salida 250
Nivel de salida de RF típica 100
Ajuste de nivel de RF 0 - 20 dB
Planitud en banda (ruido) ± 1.5 dB
MER salida típica 36 dB
Rechazo típico < -50 dBc
