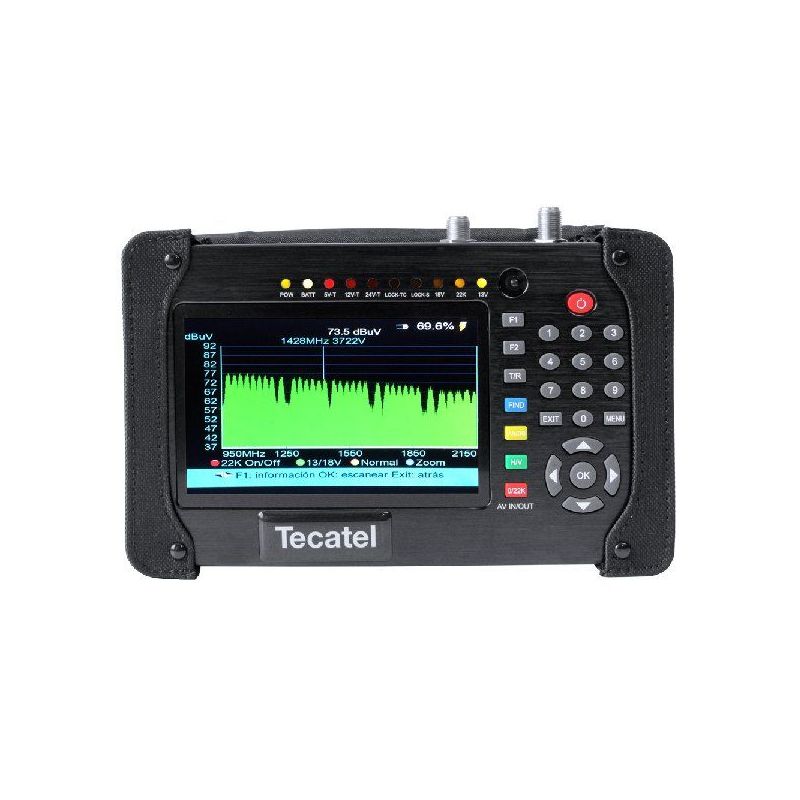

Tecatel M-T1 - Field meter combo DVB-S-S2-T-T2-C HD

Combo signal meter DVB-S / S2, DVB-T / T2 and DVB-C HD with high-definition TFT-LCD screen, fast search, Free channel display, USB port, selectable antenna power output, multi-menu language and video input

€649.77
Tax included
Reference tecatel-M-T1
Brand Tecatel
Quantity
Out-of-Stock

Free shipping

Tecatel M-T1. Combo Signal HD meter DVB-S/S2, DVB-T/T2 and DVB-C HD

Features

  • DVB-S/S2 / DVB-T/T2 and DVB-C HD meter
  • High definition TFT-LCD screen
  • Quick search.
  • Play live FTA channels.
  • USB port for SW upgrade.
  • Antenna power output selectable.
  • Multilanguage OSD.
  • AV IN for STB, Camera, etc.
  • Real Spectrum
  • MER and BER signal indicator.



Specifications

Tecatel M-T1
Input frequency range DVB-S/S2 950-2150 MHz
Input frequency range DVB-T/T2 / DVB-C  110-868 MHz
Input level 41-82 dBµV
Input impedance  75 Ω
External power supply  14 V DC
Display TFT- LCD
LNB voltage 13/18V – 0/22KHz
LNB Power consumtion  max. 400 mA
Demodulator DVB-S QPSK ( 2Mbps ~ 45Mbps ) / 8 PSK
Demodulator DVB-T / DVB-C QPSK / 16QAM / 32QAM / 64QAM / 128QAM / 256QAM
Dimensions 205 x 125 x 40 (mm)
Weight 0.720 Kg
