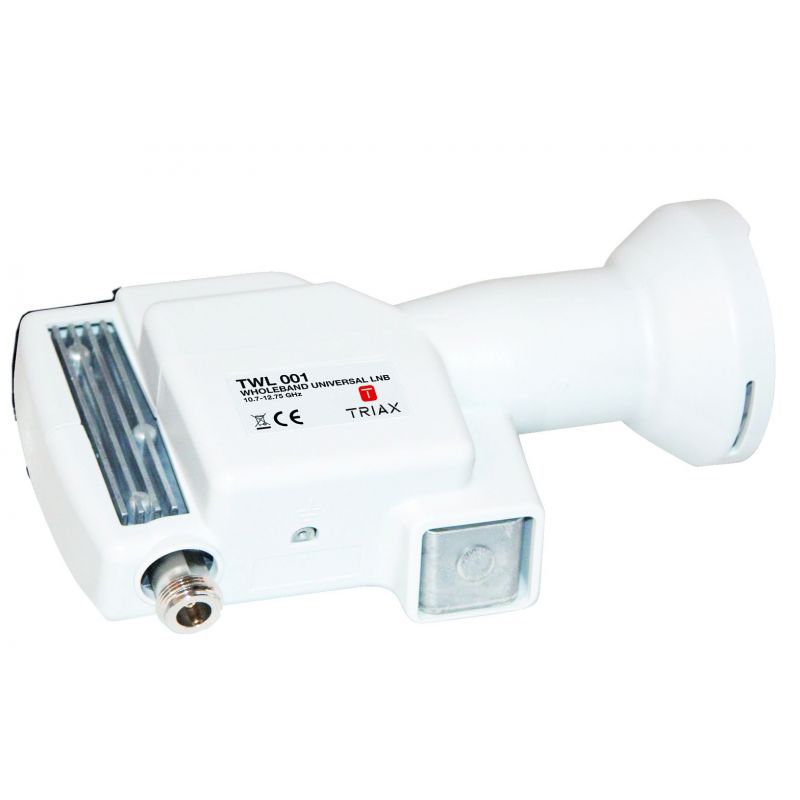

LNB with coaxial output type N 50 ohm. Noise 0.5 dB, amplification 62 to 72 dB Triax

LNB with coaxial output type N 50 ohm. Noise factor 0.5 dB, amplification 62 to 72 dB Triax. Powered by the TOU 232

€151.25
Tax included
Reference triax-307612
Brand Triax
Quantity
Available in 4/5 days

Free shipping

LNB with coaxial output type N 50 ohm. Noise 0.5 dB, amplification 62 to 72 dB Triax

€151.25

The TWL01 LNB, a part of the TOU232-Kit, constantly receives all 4 Ku-Band polarities, and uses a frequency stacking technique to put all four SAT-IF polarities into one large broadband frequency range of 950 to 5450 MHz.

This signal is transmitted via a High Quality RF-cable TUC xx to an external optical transmittier unit TOU 232 SA (called a Sidecar).

The lengths of the TUC coaxial cable  between the two components should not be more than 10 m.

Specifications

ORDER INFORMATION
EAN Number 5702663076129
CHARACTERISTICS
Feedhorn diameter 40 mm
L.O. frequency, horisontal 7.3 GHz
L.O. frequency, vertical 9.75 GHz
Reception frequency range 10,7 - 12,75 GHz
Reception polarization horizontal & vertical
SAT-IF horizontal band, stacked HL + HH 3.4 - 5.45 GHz
SAT-IF range, full stacked on coax output 0.95 - 5.450 GHz
SAT-IF vertical band, stacked VL + VH 0.950 - 3.0 GHz
Spurious in SAT-IF band -25 dBc
Image frequency rejection (min.) 40 dB
GAIN
Gain 62 - 72 dB
Noise figure (typical) 0.5 dB
ISOLATION
Cross polar isolation (typ.) 30 dB
OPERATIONAL
Temperature - operating -30 to +60 °C
Temperature - storage -40 to +70 °C
DC Current consumption < 450 mA
CONNECTORS
Connector power supply N, through SAT-IF output
Connector IN N-connector 50 Ohm
MECHANICAL
Packaging Depth 0,177 m
Packaging Height 0,075 m
Total Weight 0,478 kg
Packaging Width 0,108 m
Net Weight 0,434 kg
Tara Weight 0,044 kg
Packaging Volume 0,001 m3
