SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 47SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 130 AND id_lang = 1 Satellite Offset 240 cm Skyware Fiber Channel Master Professional
search

Satellite dish Offset Skyware Channel Master RX 240cm Ku band

Antenna channel master 2.4 m. Professional fiberglass offset and fixed mount.

€4,316.00
Tax included
Reference CMSKY-240
Brand Skyware Channel Master ASC
mount
Actuator for polar mount
Quantity
Available in 24/48h

Free shipping

Satellite dish Offset Skyware Channel Master RX 240cm Ku band

€4,316.00

You might also like

This product is not sent to some countries or areas, if the cart does not have available carriers, you can contact us here

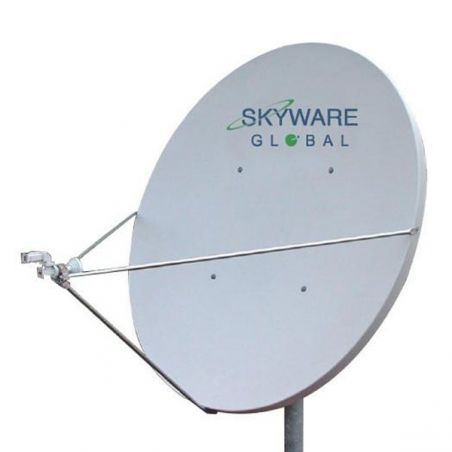

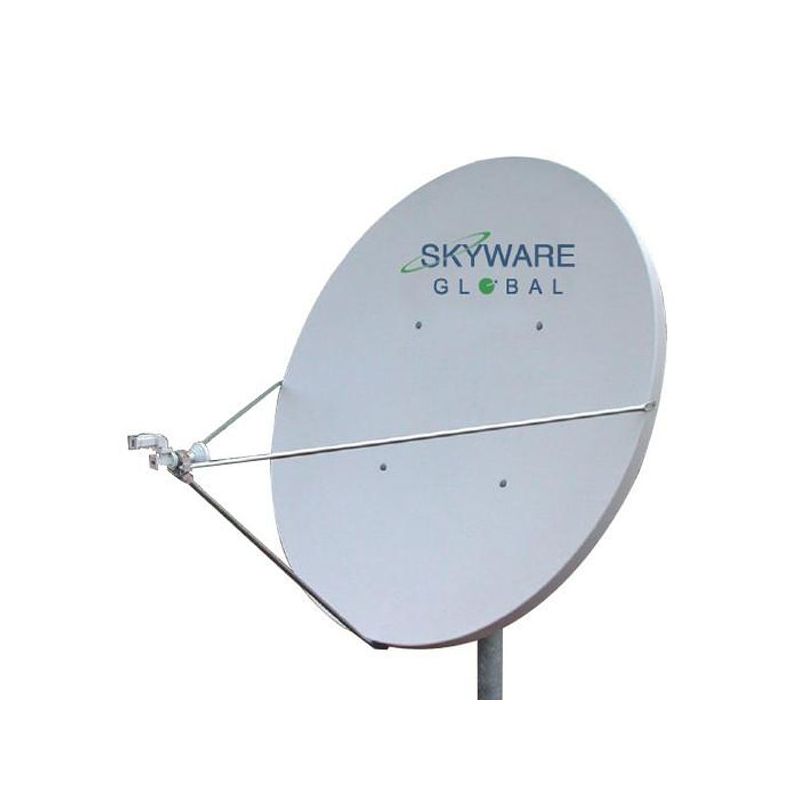

The Skyware Global 2.4 m Type 243 Offset Antenna is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which not only strengthens the antenna, but also helps to sustain its critical parabolic shape.

The Az/El mount is constructed from heavy-gauge steel to provide a rigid support to the reflector. The Az/El mount secures the antenna to either a 168 mm (6.63"). O.D. mast and prevents slippage in high winds.

A specially formulated powder paint process offers excellent protection from weather-related corrosion.

Features

  • All materials comply with EU directive No. 2002/95/EC (RoHS).
  • One-piece thermoset-molded offset reflector.
  • Single bolt fine elevation adjustment.
  • Galvanized 19 mm (.75”) O.D. feed support legs.
  • Factory pre-assembled Az/El mount.
  • Plated hardware for maximum corrosion resistance.
  • Available with a wide variety of Ku-band feeds.
  • Does not include LNB or Waveguide.

Specifications

Type    Offset
Diameter    240 cm
Frequency

Band C

Ku Band

3.4 - 4.8 GHz

10.95 - 12.75 Ghz
Gain at 3.95 GH / 11.95 Band C

Ku Band

38 dBi

47.6 dBi
Tª Noise (30º Elevation)

Band C

Ku Band

 36º K

 31º K
Cross polarization discrimination Band C

Ku Band

 30 dB
VSWR

Band C

Ku Band

1.4:1

1.3:1
Angle of Elevation 10º -90º (Continuo)
Azimut 0º -360º (Continuo)
Reflective material Fiberglass
Acceptable Mast Diameter 168 mm

Wind Resistance (Operational)

 80 Km/h
Wind resistance (External) 200 Km/h
Work rate -50ºC a +80ºC
Operational Humidity 0 a 100%
Interface WR75 Flat Flange

Downloads

DATA SHEET
