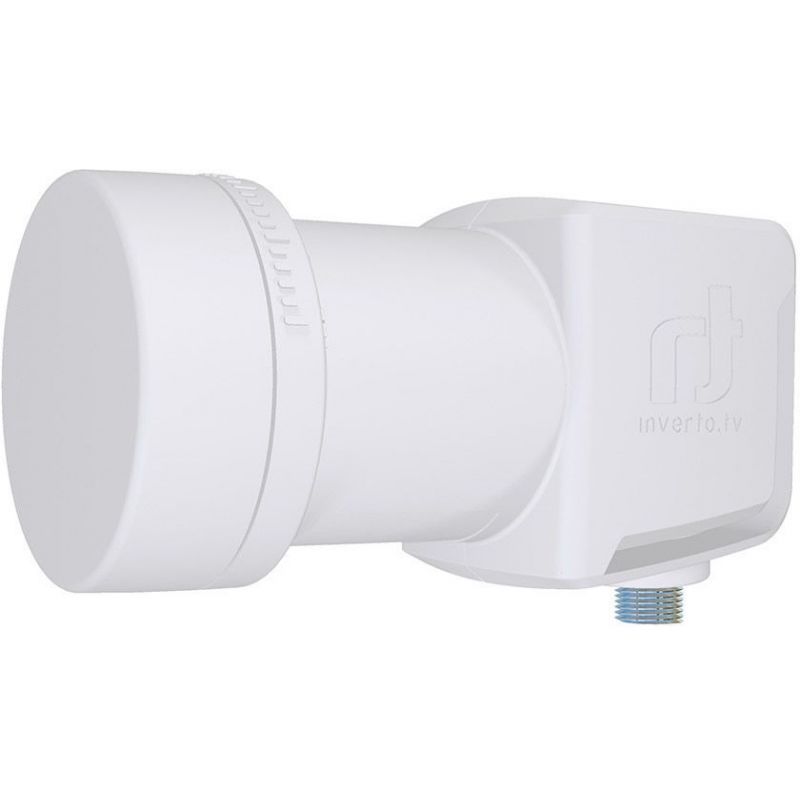

LNB Inverto Single 40mm Essential 0.3 dB

It enables the reception of satellite TV from a single satellite and its distribution to a single tuner Set-top box. The LNB supports both Standard and High Definition transmissions, delivers excellent RF performances, very low power consumption and importantly engineered to mitigate interferences from 4G/LTE transmissions

€4.85
Tax included
Reference inverto-5288
Brand Inverto
Quantity
Out-of-Stock

Free shipping

Specifically designed to address the demand of the global DTH market for a competitive and 4G/LTE protected solution, this LNB provides optimized reception capabilities using the latest technology in satellite reception. It enables the reception of satellite TV from a single satellite and its distribution to a single tuner Set-top box. The LNB supports both Standard and High Definition transmissions, delivers excellent RF performances, very low power consumption and importantly engineered to mitigate interferences from 4G/LTE transmissions. Manufactured to the highest industry quality standards and engineered to meet strict specifications, this LNB is an ideal solution for DTH operators and satellite broadcast reception across the world.

Main Features

  • Low Phase Noise, DVB-S2 (HDTV) compliant
  • Low Noise Figure
  • Low Power Consumption
  • High Cross Polarization Isolation
  • High Frequency Stability
  • Greater immunity against 4G interferences

Specs

draw

Inverto IDLE-SINL46-ESSEN-OPP
Low Band Input Frequency Range 10.7~11.7 GHz
Low Band Output Frequency Range 950~1950 MHz
LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7~12.75 GHz
High Band Output Frequency Range  1100~2150 MHz
LO Frequency 10.6 GHz
Noise Figure 0.3dB typ. (0.7dB max.)
LO Initial Accuracy +/- 1.0 MHz max.
LO Temperature Drift +/- 3.0 MHz max.
LO Phase Noise @ 10K Hz -80 dBc/Hz max.
Conversion Gain 52dB ~ 62dB
Gain Ripple +/- 0.75 dB/27MHz
Gain Variation +/- 3  dB
Image Rejection 40 dB min.
1 dB Compression Point (O/P) 0.0 dBm min.
Cross talk 20dB min.
Control Signals Ca [ V ] 11.0~14.0 V
Control Signals Cb [ H ] 16.0~20.0 V
Control Signals Cc [Band switching] 22KHz +/- 4KHz  0.4V – 0.8V pp
Output VSWR 2.5 : 1
Spurious level -60 dBm max.
DC Power 90mA max. @ 11 – 20V
Working Temperature -30~+60 °C
Output Impedance (connect to STB) 75Ω
Output connector F-type (female)
Weight 80 g
