SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 22SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 132 AND id_lang = 1 Triax 0.3 dB single universal LNB 1 output
Triax 0.3 dB 1 salida LNB universal single
search
  • Triax 0.3 dB 1 salida LNB universal single

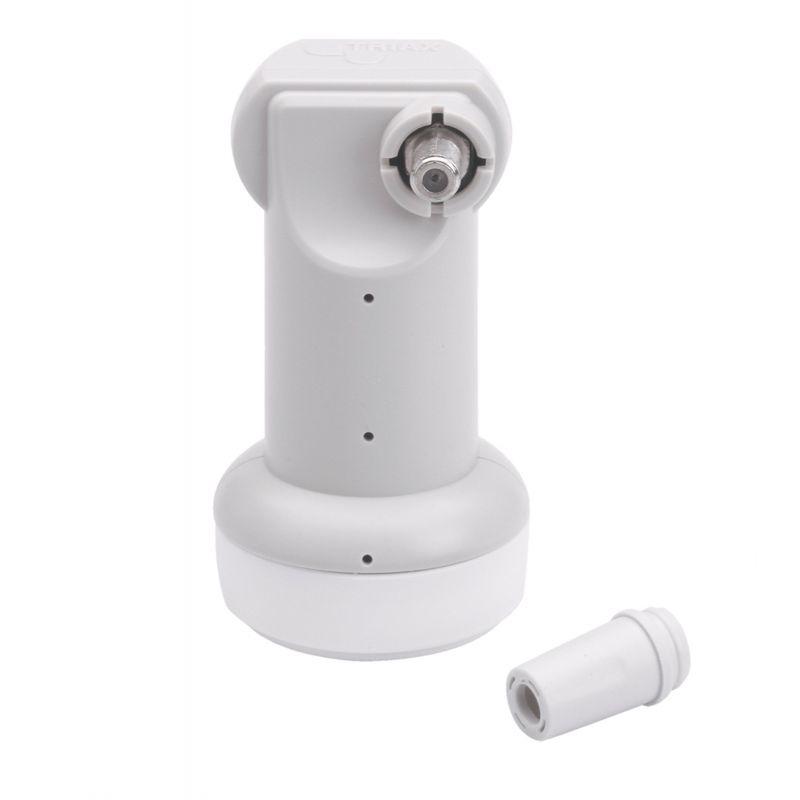

Triax TSI 006 Universal Single LNB, RAL 7035 0.3 dB

TSI 006 Universal unique. Full KU band coverage for analog and digital reception. Low noise figure High gain and excellent cross polarization isolation. High output level and low power consumption. Flat variation of the gain. For 2 or 4 decoders. Sliding lid available in 2 colors. Individually packaged.

€9.32
Tax included
Reference triax-304432
Brand Triax
Quantity
Out-of-Stock

Free shipping

Features

  • Full KU band coverage for analog and digital reception.
  • Low noise figure
  • High gain and excellent cross polarization isolation.
  • High output level and low power consumption.
  • Flat variation of the gain.
  • For 2 or 4 decoders.
  • Sliding lid available in 2 colors.
  • Individually packaged

Specifications

ORDER INFORMATION
EAN Number 5702663044326
CHARACTERISTICS
Feedhorn diameter Ø 40 mm
Feedhorn F/D @ 11.7 0.615
Frequency stability (-40 ~ +60 °C) ± 2.1:1 MHz
Phase noise @ room temperature - 100 kHz - 95 dBc/Hz
Phase noise @ room temperature - 10 kHz - 75 dBc/Hz
Phase noise @ room temperature - 1 kHz - 50 dBc/Hz
Spurious level - 60 (max.) dBm
Switching high band 22 (± 4) kHz
Switching low band 0.0 kHz
Image rejection (min.) 40 dB
LNB type Single
FREQUENCY
L.O. frequency high band 10.6 GHz
L.O. frequency low band 9.75 GHz
Output frequency high band 1100 - 2150 MHz
Output frequency low band 950 - 1950 MHz
Input frequency high band 11.7 - 12.75 GHz
Input frequency low band 10.7 - 11.7 GHz
L.O. technology DRO
GAIN
Conversion gain (max.) 62 dB
Conversion gain (min. at room temperature) 50 dB
Gain flatness (across 26 MHz segm) ± 1.0 (typ.) dB
Gain variation (over operating band) 5 p-p (typ.)
Noise figure max. 0.3 dB
ISOLATION
Cross polarization isolation 25 typ. dB
OPERATIONAL
Operating temperature range -40 ~ +60 °C
Operating voltage horizontal 15.5 ~ 21.0 V/DC
Operating voltage vertical 10.5 ~ 14.5 V/DC
DC Current consumption 100 mA
CONNECTORS
Connector Type F-female (IEC 61 169-24)
MECHANICAL
Colour RAL 7035
Product Depth 97 mm
Packaging Depth 0,120 m
Packaging Height 0,062 m
Total Weight 0,138 kg
Packaging Width 0,062 m
Max. depth incl. feedhorn 135 mm
Net Weight 0,112 kg
Packing QTY 50
Tara Weight 0,026 kg
Product Width 40 mm
Product Height 137 mm
