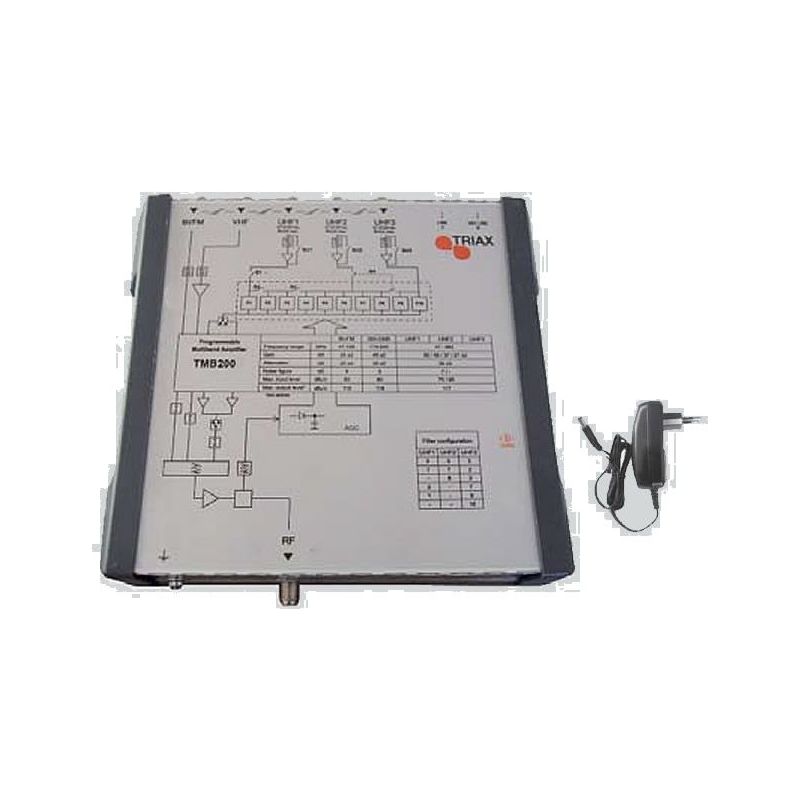

Triax TMB 200 - 5-input programmable amplifier with LTE filters
Programmable amplifier with 5 programmable inputs (BI / FM, BIII, 3 * UHF). 10 programmable UHF filter channels to be distributed in 3 UHF inputs. Switchable UHF gain 55/45/37/27 dB. BIII gain 48 dB, BI / FM gain 32 dB. Output level: UHF 117 dBμV (@ -60 dBc), remote power supply 12-24V / 80 mA.
€441.65
Tax included
Reference
triax-360221
Brand
Triax
Programmable multiband amplifier.
Features
- Programming via command TMB 001 not included
- 5 entries (BI / FM; BIII; 3xUHF)
- 10 selective UHF filters that adjust the bandwidth from 1 to 7 channels (8-56 MHz).
- All UHF filters have separate settings, such as amplification and frequency.
- Switchable UHF gain 55/35 dB, BIII gain 45 dB, FM gain 30 dB
- UHF output level 115 dBμV (@ -60 dBc).
- Power to preamplifiers 12 - 24 V / 80 mA
- Automatic Gain Control provides an output level for constant UHF and VHF and stable operating conditions
- Export or import of all device settings thanks to the RS 232 interface.
Specifications
| INFORMATIONS SUR LA COMMANDE | |
|---|---|
| Code EAN | 5702663602212 |
| CARACTÉRISTIQUES | |
| Niveau entrée - BIII/DAB | max. 80 dBµV |
| Niveau entrée - FM | max. 90 dBµV |
| Niveau entrée - UHF | 75...95 dBµV |
| Niveau de sortie pour 3ème ordre à 60dB - UHF | 117 dBµV |
| Niveau de sortie VHF et UHF [aux] | 120 dBµV |
| BANDE DE FRÉQUENCES | |
| Bande passante BI/FM | 47-108 MHz |
| Bande passante BIII/DAB | 174-240 MHz |
| Bande passante UHF | 470-862 MHz |
| Nombre de filtres de canaux | 10 |
| GAIN | |
| Gain - FM [47-108 MHz] | 32 dB |
| Gain - DAB [170-230 MHz] | 48 dB |
| Gain - UHF 1 [470-790 MHz] | 55 dB |
| Gain - UHF 3 [470-790 MHz] | 55 dB |
| Gain - UHF 2 [470-790 MHz] | 55 dB |
| Facteur de bruit BI/FM | 9 dB |
| Facteur de bruit UHF | 7 dB |
| Facteur de bruit VHF | 5 dB |
| ATTÉNUATION | |
| Atténuation | 0...20 dB |
| ADAPTATION | |
| Adaptation | >10 dB |
| CARACTÉRISTIQUES ÉLECTRIQUES | |
| Impédance | 75 Ω |
| OPÉRATIONNEL | |
| Efficacité de blindage | EN50083-2 (Class A) |
| Courant d'alimentation de LIGNE (max.) | 80 mA |
| Tension sur la LIGNE DC (max.) | 12/24 VDC |
| Plage de température de fonctionnement | -5 - +40 °C |
| AC Tension d'alimentation | 100...240 VAC |
| Consommation d'énergie (typique) | 9...16 W |
| CONNECTEURS | |
| Type de Connecteur | F-femelle |
| Nombre de sorties | 1 |
| Connecteur de sortie | Embase F-Femelle |
| Connecteur d'entrée | Embase F-Femelle |
| MÉCANIQUE | |
| Poids brut | 1,190 Kg |
| Poids net | 1,190 kg |
