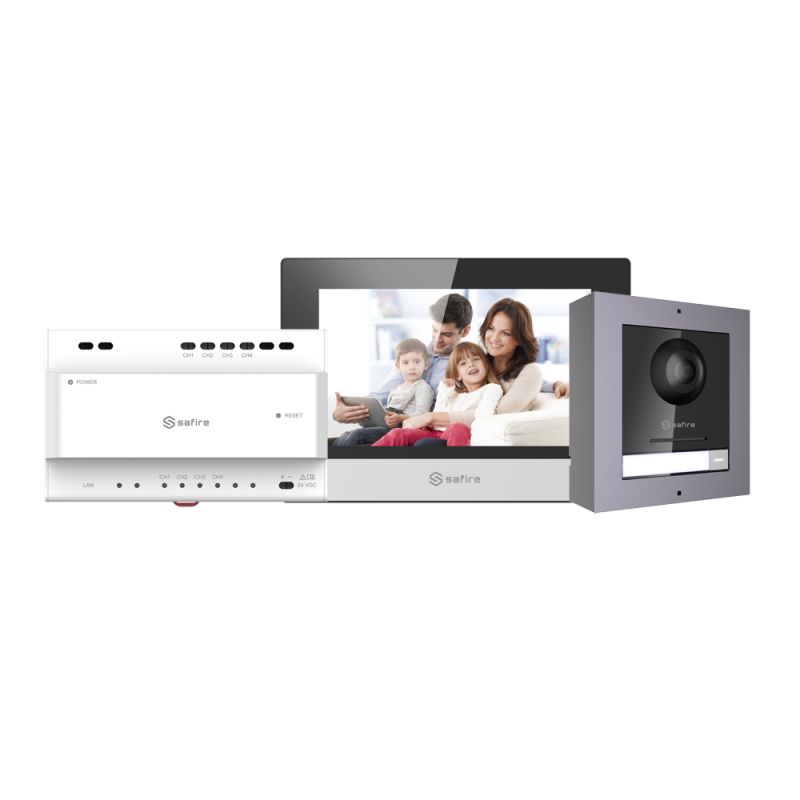

Safire SF-VIK001-S-2 - Video-intercom kit, 2 wire connectivity, Includes…

Data sheet

Weight

360 g
500 g
750 g

Power

DC 24 V / 2,5 A max.
Through 2 wire hub SF-VIMOD-HUB-M2 or SF-VIMOD-HUB4-2

Temp. operation

-10º C ~ +55º C
-40º C ~ +60º C

Degree of protection

IP65

Dimensions

98 (H) x 99.8 (W) x 43.9 (D) mm
200 (H) x 140 (W) x 15.1 (D) mm

Inputs

4 inputs
8 Configurable alarm entries

Outputs

2 relay / 1 module output
2 relay / 1 module output / External power supply required
4 channels of 2 wires

Power supply

Through 2 wire hub SF-VIMOD-HUB-2
Through 2 wire hub SF-VIMOD-HUB-M2 or SF-VIMOD-HUB4-2
Via 2 Wire Hub SF-VIMOD-HUB-M2
Via 2 wire hub SF-VIMOD-HUB-2

Material

Stainless steel

Communication

2-hilos Technology (Up to 4 devices)

Audio

Bidirectional audio with microphone and speaker
Two-way audio with microphone and speaker with noise reduction

Operating system

LINUX OS

Memory

Slot MicroSD up to 32GB

Image sensor

Low Illumination 2 MP IR

Viewing angle

D: 180º H:96º

Remote access

Mobile app or Safire Control Center-software

Network interface

Ethernet 10/100 BaseT
Via the 2 wire system
Via the 2 wire system / WiFi 802.11b/g/n

LCD

7\" 1024x600, Capacitive

Operation mode

Power, Video & Audio all via the 2 wire technology
Tactile Buttons

Modular

Compatible with Safire extension modules

Image Functions

BLC / WDR / DNR

Keypad

Mechanical button with LED backlit name-tag
