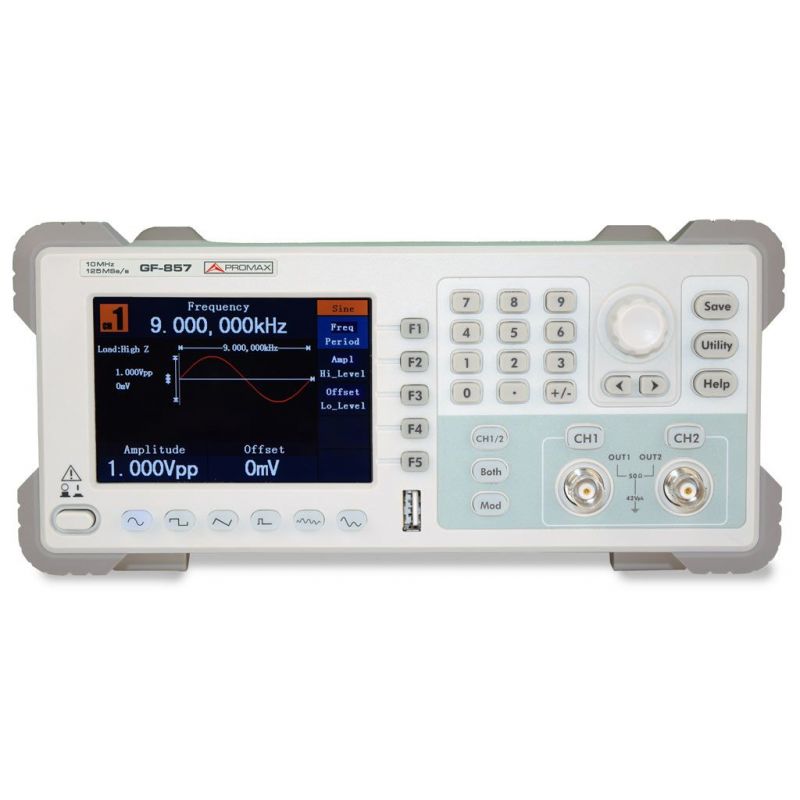

Promax GF-857 Function Arbitrary Dual Function Generator 10 MHz, 125 Ms/s USB, Digital Modulations

10 MHz and 125 MS/s arbitrary DDS generator with integrated frequency meter and possibility of USB control. Reproduces analog and digital modulations AM, FM, PM, FSK and performs sweeps and burst. It also has input for external modulation and external clock input.

€713.90
Tax included
Reference promax-gf-857
Brand Promax
Quantity
Available in 24/48h

Free shipping

Promax GF-857 Function Arbitrary Dual Function Generator 10 MHz, 125 Ms/s USB, Digital Modulations

€713.90

The 10 MHz GF-857 arbitrary dual generator uses DDS (Digital Data Storage) technology to deliver two programmable signals that are displayed on a 4-inch color LCD. All basic waveforms are preprogrammed. In addition to using the front keypad, for programming, the program can be debugged on the computer and sent via USB or optionally via RS-232.

One of the characteristics that makes the generator especially interesting is the possibility of reproducing all kinds of analog and digital modulations: AM, FM, PM, FSK and sweeping and bursting. It also has input for external modulation and external clock input. It includes a frequency counter up to 200 MHz of 6 digits.

Main Features

  • High resolution 4 inch TFT LCD screen (480 x 320 pixels)
  • DDS advanced technology
  • Sample Rate 125 MS / s
  • 1 μHz frequency resolution
  • Vertical resolution 14 bits
  • 1M waveform record length
  • 5 preprogrammed waveforms
  • Standard USB port interface
  • Control software included

Specifications

SPECIFICATIONS GF-857
FREQUENCY OUTPUT 10 MHz
SAMPLE RATE 125 MS/s
VERTICAL RESOLUTION 14 bits
STANDARD WAVEFORM Sine, Square, Pulse, Ramp and Noise
ARBITRARY WAVEFORM Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave and others, total 48 built-in waveforms and user-defined arbitrary waveform
MODULATION AM, FM, PM, FSK, Sweep and Burst
MODULATION FREQUENCY 2 MHz to 20 kHz (FSK 2 mHz - 100 kHz)
COUNTER 100 MHz to 200 MHz
COMMUNICATION INTERFACE USB, RS-232 (optional)
