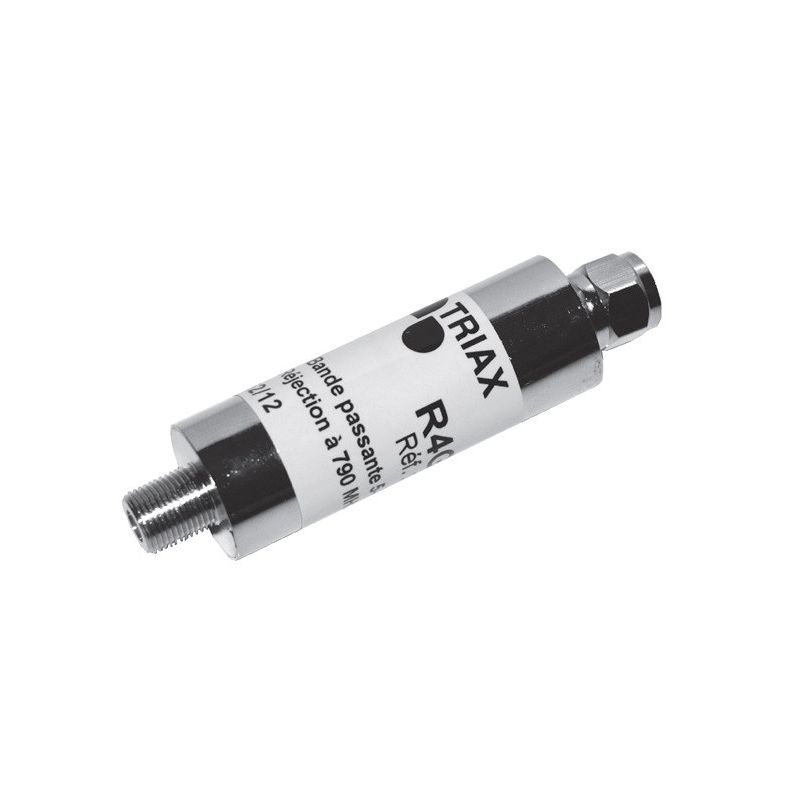

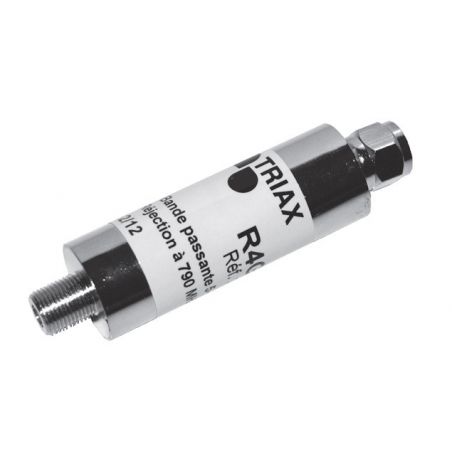

Triax R4G 059 Rejection filter LTE. Step in 5-782 MHz. Rejection in 791 MHz -20db.

Filtro de rejeição para LTE, passo de freqüência 5 ... 782 MHz, perdas de perdas <6,5dB, rejeição a 791 MHz -20dB, etapa atual 1A DC, conectores F.

€9.26 €15.43 Save 40%
Tax included
Reference triax-360113
Brand Triax
Quantity
Available Now

Free shipping

Triax R4G 059 Rejection filter LTE. Step in 5-782 MHz. Rejection in 791 MHz -20db.

€9.26 €15.43 Save 40%

Rejection filter for LTE, step of frequencies 5 ... 782 MHz, step losses <6,5dB, rejection at 791 MHz -20dB, current step 1ADC, F connectors.

Get ready for the Digital Dividend!

LTE protected by Triax

LTE / 4G signals are just around the corner, these will negatively affect the television signal, so we have to be prepared and install filter systems to improve our DTT signals avoiding interference and signal problems improving the quality of image.


Download this document about everything you need to prepare for the Digital Dividend



Specifications

General
Inputs / Outputs 1/1
Channel 2 - 59
Predicted 782 MHz (incl C59) < 3 dB
Impedance 75 Ohm
Current passage 30V / 1A
Rejection (dB)
791 MHz -30
796 MHz -45
800 MHz -60
862 MHz -60
Connectors
Input F Male
Output F Female
Dimensions
Weight 0.1kg
High 25
Long 110
Width 25
