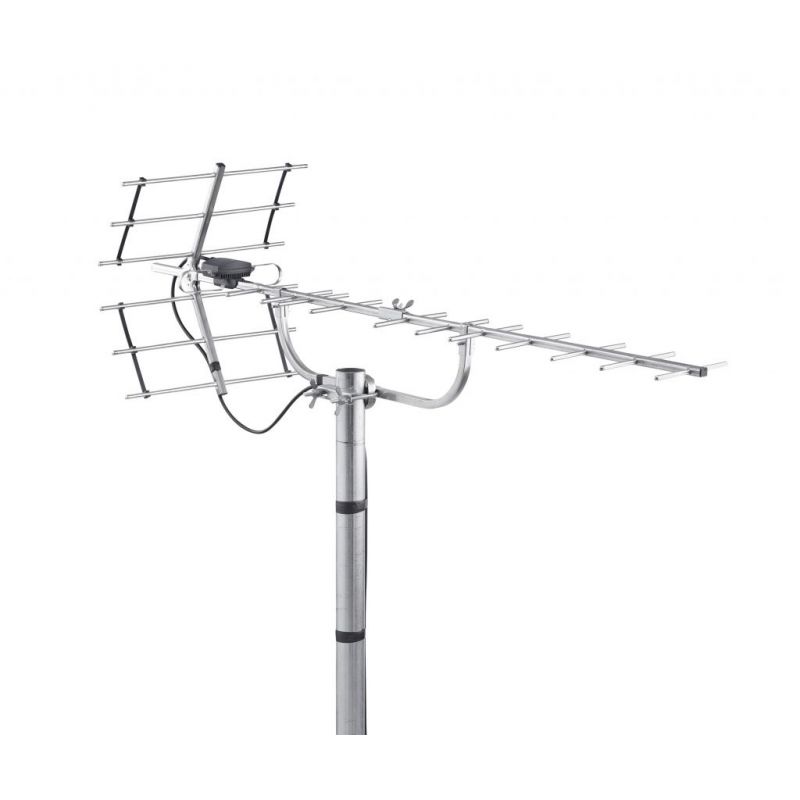

DIGI 018 LTE UHF antenna with LTE Yagi filter with 18 elements for C21 / C60 (G- 14.5 dB) Triax
UHF antenna with LTE Yagi filter with 18 elements for C21 / C60 (G- 14.5 dB). Triax DIGI 018 LTE. Optimized to receive frequencies from 470 to 790 MHz. Channels 21 to 60. Gain: 14.5 dB. Protection mounting H / V.LTE.
€57.12
Tax included
Reference
triax-108430
Brand
Triax
UHF antenna with LTE Yagi filter with 18 elements for C21 / C60 (G- 14.5 dB).
Features
- 18 elements UHF antenna
- Unparalleled gain and rejection performance
- Designed to receive DTT (Digital Terrestrial TV) signals in 470-790 MHz range (ch. 21-60)
- Rejects 4G/LTE signals in 791-862 MHz range using Triax’s “Antenna Low Pass System”
- Sealed dipole house with rear pointing F-connector for optimal TV-signal performance
- Resistant to extreme weather conditions (made from aluminium, magnesium and manganese alloy)
- Adjustable brackets for masts up to 60 mm
- Bracket type: Cradle support
- Packing: Individual brown box, 10 pcs in outer carton
- This item will be replaced by item nr. 105430
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702661084317 |
| CHARACTERISTICS | |
| Type | Digi 18 |
| FREQUENCY | |
| Band | B IV/V UHF |
| Channels | 21...60 |
| Frequency range UHF | 470...790 MHz |
| LTE protection | 800 |
| GAIN | |
| Gain @ 474 MHz (Ch. 21) | 8.0 dBi |
| Gain @ 538 MHz (Ch. 29) | 10.0 dBi |
| Gain @ 730 MHz (Ch. 53) | 14.5 dBi |
| Gain @ 786 MHz (Ch. 60) | 12.5 dBi |
| Gain @ 602 MHz (Ch. 37) | 13.0 dBi |
| LOSS | |
| Rejection @ 811 MHz (LTE D1) | 4.0 dB |
| Rejection @ 821 MHz (LTE D6) | 8.0 dB |
| Rejection @ 832 MHz (LTE U1) | 10.0 dB |
| Rejection @ 862 MHz (LTE U6) | 10.0 dB |
| ELECTRICAL | |
| Front to back ratio - horisontal | 25 dB |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Benchmark | CAI std. S |
| CONNECTORS | |
| Connector Type | F-female |
| MECHANICAL | |
| Main Material | Aluminum |
| Beamwidth horisontal | ± 18 ° |
| Bracketry | Cradle/support boom |
| Elements | 18 |
| Packaging Depth | 0,920 m |
| Packaging Height | 0,070 m |
| Total Weight | 1,480 kg |
| Packaging Width | 0,270 m |
| Product Length | 1446 mm |
| Net Weight | 1,218 kg |
| Tara Weight | 0,262 kg |
| Packaging Volume | 0,017 m3 |
| Product Width | 420 mm |
| Windload | 59 N |
| Individual brown box | Yes |
