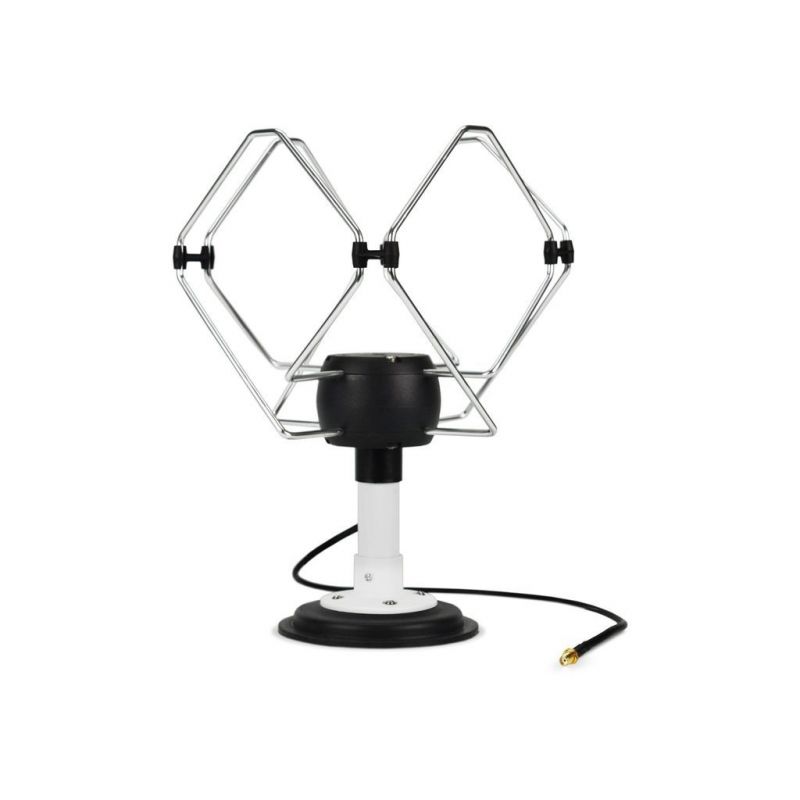

Promax AM-060 Portable omnidirectional antenna for coverage analysis
Portable antenna very suitable for signal coverage analysis (drive test) thanks to its omnidirectional design, its magnetic base and its operation with no need of external supply, extending the battery operation of the TV analyzer during the signal coverage analysis.
€533.61
Tax included
Reference
promax-am-060
Brand
Promax
Promax AM-060 Portable omnidirectional antenna for coverage analysis
€533.61
The AM-060 is an omnidirectional, portable terrestrial TV antenna that is perfect for performing signal coverage analysis (drive test), both in digital and analogue broadcasting.
It is very suitable to be mounted in vehicles because its magnetic base can be easily and firmly fixed to their body.
The AM-060 operates without the need of external supply. This extends the battery operation time of the TV analyzer during the signal coverage analysis.
The K factor of the omnidirectional antenna AM-060 is available and delivered together with the product.
Specifications
| FREQUENCY BAND | VHF, UHF |
| FREQUENCY MARGIN | From 170 to 870 MHz |
| IMPEDANCE | 75 Ω |
| RADIATION PATTERN | Horizontally polarized omni-directional antenna |
| CONNECTOR | F-Male |
| MATERIAL | Copper, aluminium and plastic |
| DIMENSIONS | 182 (W.) x 300 (D.) x 182 (D.) mm |
