Low-cost digital header that allows transmodulating DVB-S / S2 satellite channels to DVB-T digital terrestrial television format with Common Interface slots that allow you to decode encrypted channels.

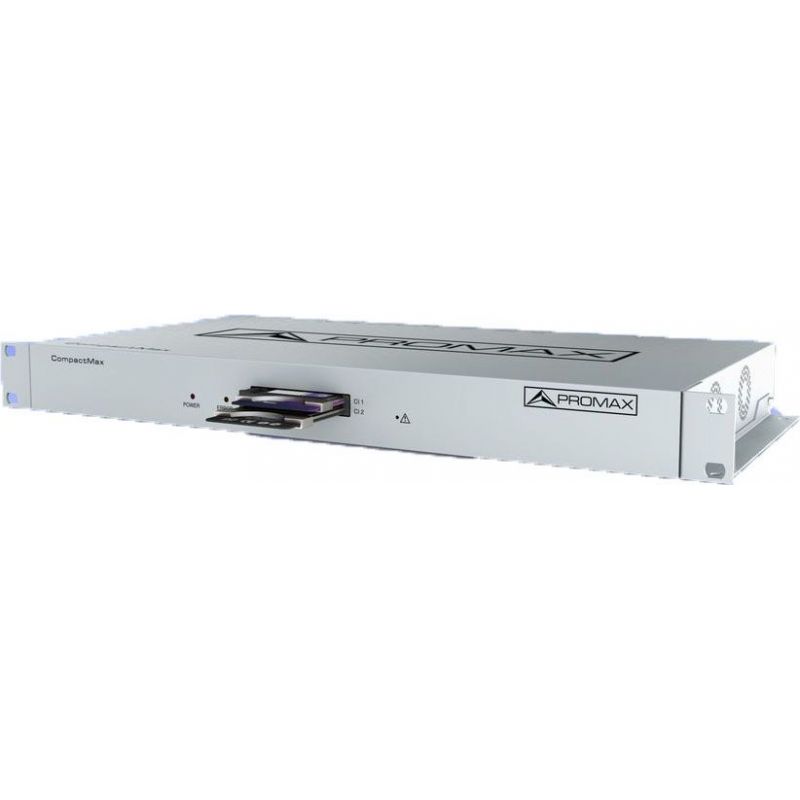

CompactMax-1 is a compact system that allows you to distribute satellite TV channels (DVB-S or DVB-S2) in the Digital Terrestrial Television (DVB-T) format. It supports a maximum of 4 satellite inputs (2 inputs for free channels and 2 for encrypted channels) to deliver up to 8 DVB-T muxes to the output, with dynamic remote management via webserver. It is integrated in a 1U size module for standard 19" rack mounting. It can also be mounted directly on the wall.

CompactMax-1 can be used in TV headers of all kinds: hotels, convention centers, hospitals, boats, etc. It can also be used in television repeaters to cover shadow areas.

CompactMax-1 connects to a local LAN or the Internet. In this way the remote control of the system is carried out from any computer with access to the network through a web interface or webserver.

Features

• 4 satellite inputs transmodulated in up to 8 DVB-T muxes.
• 2 CI slots to decode encrypted channels.
• PID filtering to select the desired output channels.
• Regeneration of PAT, PMTs, SDT and NIT tables.
• Remote control and management via webserver through LAN or Internet.
