Digital low-cost headend that enables transmodulating DVB-S/S2 satellite channels into second generation digital terrestrial television format (DVB-T2).

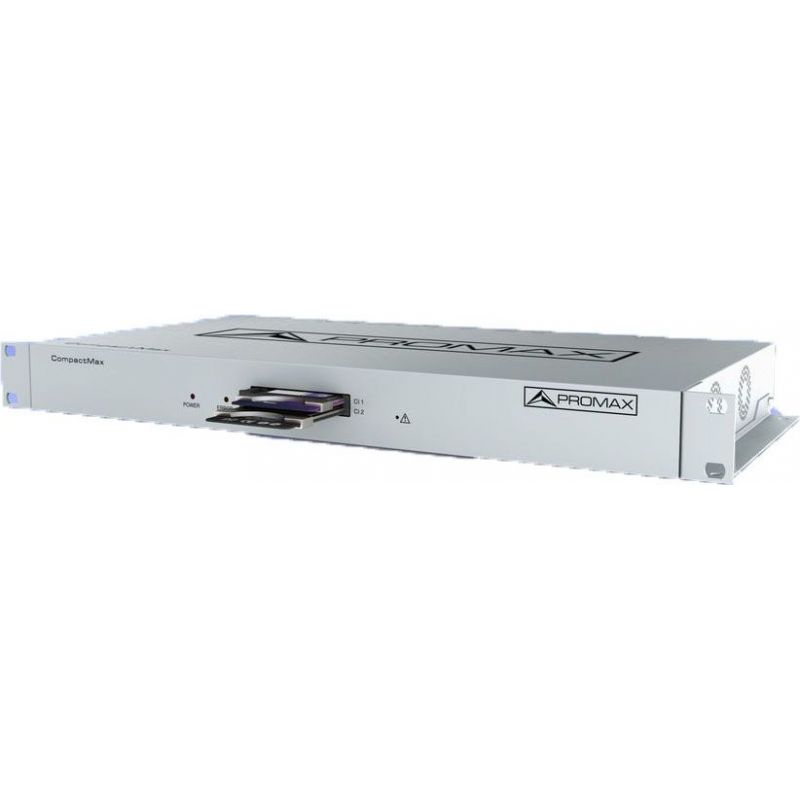

CompactMax-3 is a compact transmodulation system that allows to distribute Satellite TV channels (DVB-S or DVB-S2) in Second Generation Digital Terrestrial Television (DVB-T2) format. It can be connected to up to 4 satellite inputs (2 inputs for free channels and 2 for encrypted ones) to deliver up to 4 DVB-T2 muxes with dynamic webserver management via remote control. It is integrated into a 19" 1U Rackmount case. It can also be mounted directly on the wall.

CompactMax-3 can be used in TV headends in hotels, convention centres, hospitals, ships, etc. It can also be used as a TV repeater to cover shadow areas.

CompactMax-3 can be connected to a LAN local network or to the Internet. In this way remote control can be done from any PC computer using the integrated webserver.

Features

• 4 satellite inputs transmodulated into 4 DVB-T2 muxes.
• PID filtering to select the desired output programmes.
• PID regeneration of PAT, PMTs, SDT and NIT tables.
• Webserver for remote control and management via LAN or Internet.
