SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 7SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 13459 AND id_lang = 1 Promax GR-205 2 GHz Radio Frequency Generator, GPIB Interface
search

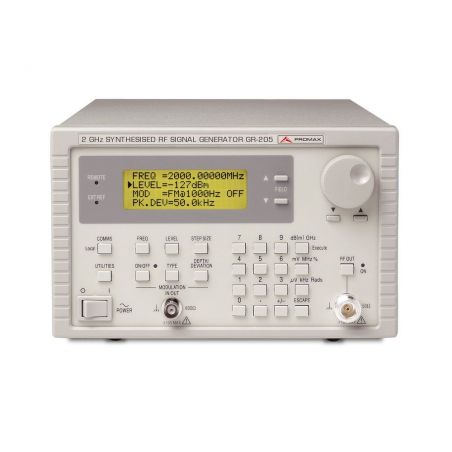

Promax GR-205 2 GHz Radio Frequency Generator, GPIB Interface

It allows working over a wide dynamic range, with low noise and through RS-232 or GPIB. It has memory for nine configurations.

€7,495.95
Tax included
Reference promax-gr-205
Brand Promax
Quantity
Available in 24/48h

Free shipping

Promax GR-205 2 GHz Radio Frequency Generator, GPIB Interface

€7,495.95

It allows working over a wide dynamic range, with low noise and through RS-232 or GPIB. It has memory for nine configurations.

The GR-205 is a synthesized RF signal generator that allows working over a wide dynamic range, with low noise and inherent good frequency stability. It also offers the possibility of modulating signals both in frequency (FM), amplitude (AM) and phase (PM), internally or externally. The instrument can be controlled manually using the front panel or remotely using the RS232 interface or the GPIB interface.

This generator incorporates the essential features necessary for measuring the sensitivity of radio receivers, measuring system gain, oscillator replacement, EMC/antenna/level measurements, tuning and alignment of receivers and as a signal generator for many other RF circuits and system development tasks.

The GR-205 can store up to nine different configurations in non-volatile memory. This capability allows repetitive test procedures to be carried out quickly and efficiently.

Specifications

FREQUENCY MARGIN150 kHz to 2000 MHz
FM MODULATION
Peak deviation0.5 kHz up to 100kHz to 800 kHz according to frec.
Configurable resolution0.5 kHz
Frequency modulationInternal 400 Hz/1 kHz, exerna 100 Hz to 300 kHz
PM MODULATION
Configurable resolution0.05 or 0.1 radians
Signal modulation
  • Internet 400 Hz and 1 kHz
  • Externa 100 Hz to 10 kHz
AM MODULATION
Depth mod. max.100%, decreasing to 90% at 2 GHz
Configurable resolution0.5 %
REMOTE CONTROLRS-232 and IEE-488 (GPIB)

Downloads

data sheet
