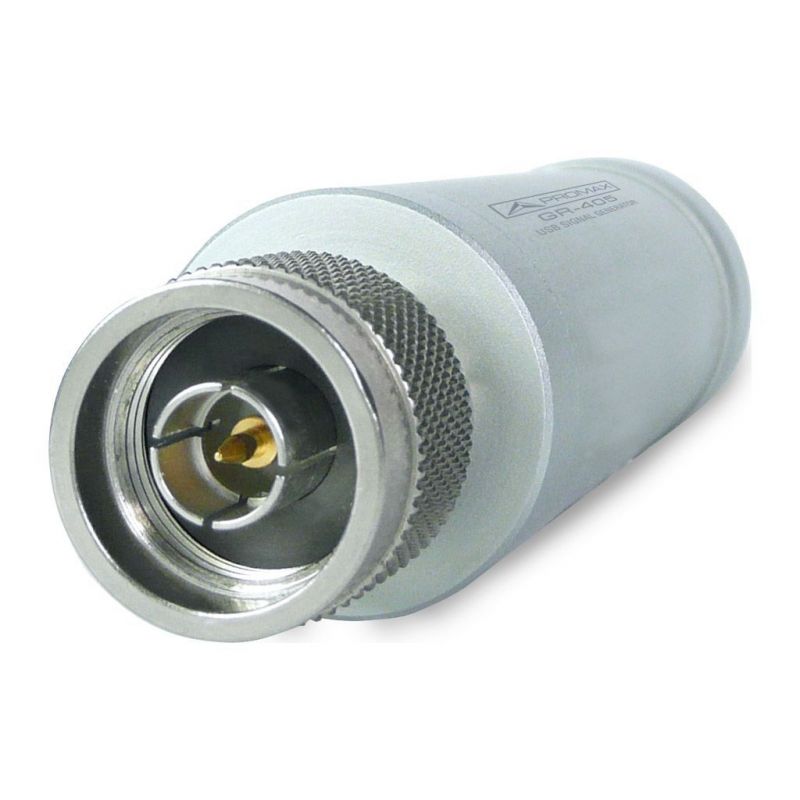

Promax GR-405 Basic RF Generator 35 MHz to 4.4 GHz, USB Only Control
RF signal generator powered and controlled from a PC via USB, with a frequency margin from 35 MHz up to 4400 MHz.
€1,015.19
Tax included
Reference
promax-gr-405
Brand
Promax
Promax GR-405 Basic RF Generator 35 MHz to 4.4 GHz, USB Only Control
€1,015.19
RF generator controlled and powered from a PC via USB, with a frequency range of 35 MHz to 4400 MHz.
The GR-405 is a signal generator that has the necessary characteristics of a large pocket-sized generator.
The RF signal generator covers the needs of users and also has a USB interface with a frequency range of 35 MHz to 4400 MHz. The RF generator provides continuous wave (CW) signal outputs without any modulated signal function . The built-in electronic attenuator allows an adjustable power range of -30 dBm to 0 dBm. The GR-405 has several operating modes, fixed frequency, sweep frequency, frequency hopping and power sweep.
Specifications
| FREQUENCY MARGIN | 34.5 MHz to 4.4 GHz |
| OUTPUT POWER | -30 dBm to 0 dBm in steps of 1 dB |
| RESOLUTION | 10 kHz |
| CONTROL MODE | Fixed frequency, frequency sweep, Frequency jump and Sweep power mode |
| PC SOFTWARE | Windows 2000 / XP / Vista / 7/8 / Linux / OS XDownloads |
