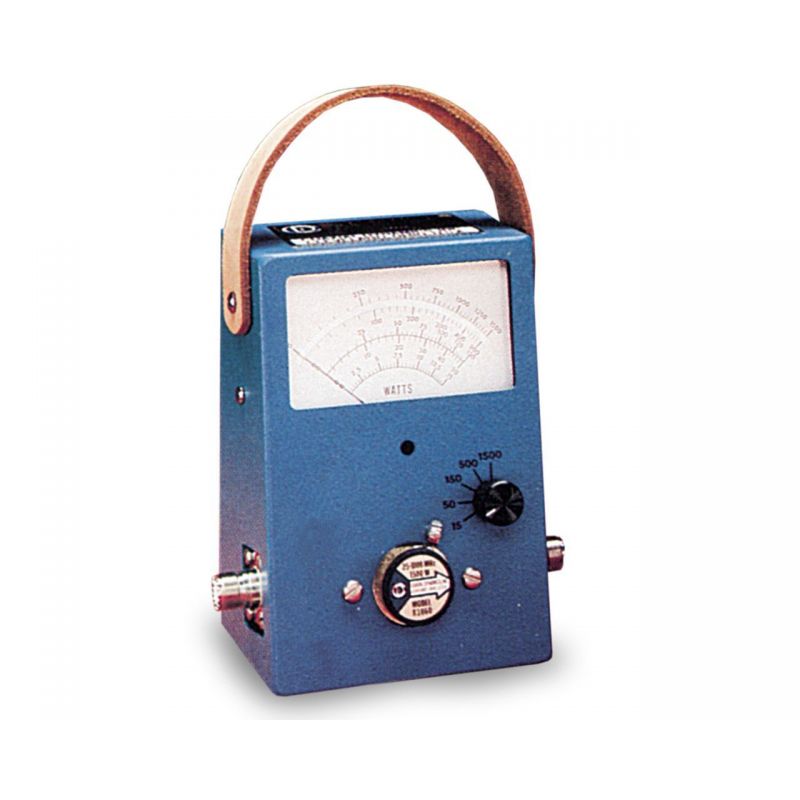

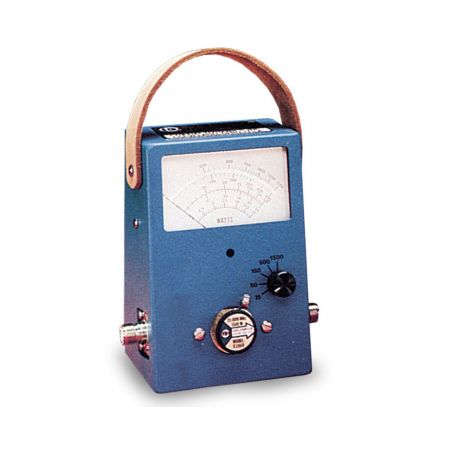

Promax IC-002 RF wattmeter 1 GHz 500 W

It is an accurate, portable, RF power meter using a Rotary Detection Component to measure Direct and Reflected Power in 5 selectable power ranges. Model IC-002 (81050) includes “Quick Match” type connectors for greater versatility.

€1,524.60
Tax included
Reference promax-ic-002
Brand Promax
Quantity
Available in 24/48h

Free shipping

Promax IC-002 RF wattmeter 1 GHz 500 W

€1,524.60

It is an accurate, portable, RF power meter using a Rotary Detection Component to measure Direct and Reflected Power in 5 selectable power ranges. Model IC-002 (81050) includes “Quick Match” type connectors for greater versatility.

The IC-002 (81050) directional wattmeter is an accurate, portable, RF power meter using a Rotary Detection Component to measure Direct and Reflected Power in 5 selectable power ranges. Model 81050 includes “Quick Match” type connectors for greater versatility. The instrument is delivered with a carrying case containing compartments for loads and connectors.

You can use the new 81050 Directional Wattmeter to measure RF Power in coaxial cables and transmission lines of between 50 and 500 Ω without need of interchangeable detector components.

The modem contains a 4-½” instrument, “Quick Match” type RF connectors, a high-precision transmission line and a broad band detector component that enables power readings in any of the 5 selected ranges 5, 15, 50, 150, and 500 W and a frequency range of 25 to 1000 MHz.

Specifications

FREQUENCY MARGIN 25 to 1000 MHz
CONNECTORS “Quick Match”, standard type N female (BNC, UHF, TNC male or female optional)

Downloads

data sheet
