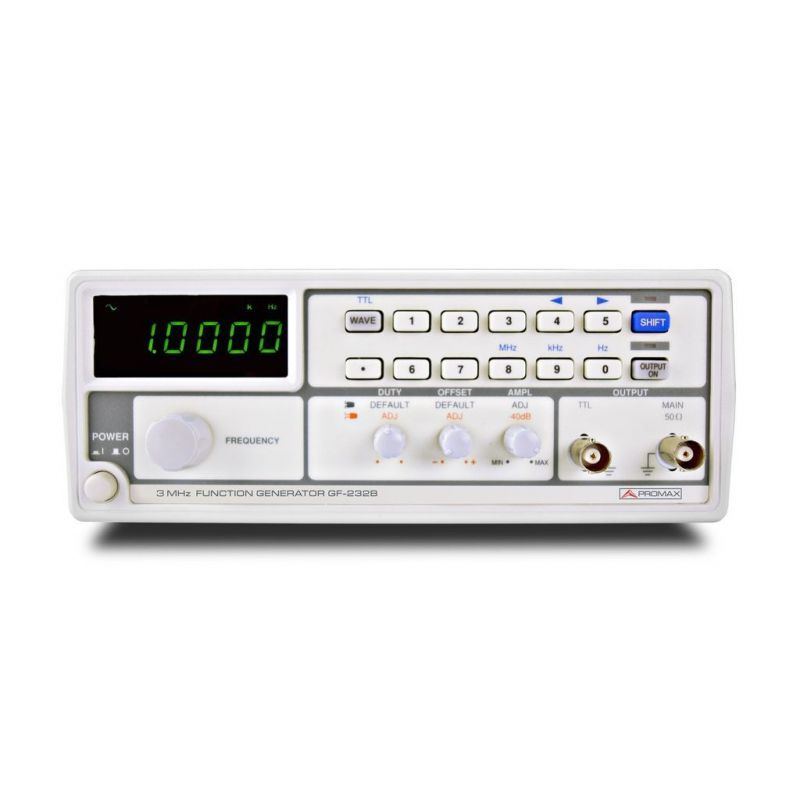

Promax GF-232B Function Generator 3 MHz / 50 ohms. Digital frequency indicator
Function generator including output in sine, square and triangular waveforms with independent TTL output and sampling frequency up to 3 MHz.
€314.60
Tax included
Reference
promax-gf-232b
Brand
Promax
Promax GF-232B Function Generator 3 MHz / 50 ohms. Digital frequency indicator
€314.60
Function generator including output in sine, square and triangular waveforms with independent TTL output and sampling frequency up to 3 MHz.
The GF-232B is a high resolution function generator that uses DDS technology to deliver a high accuracy, low distortion frequency output up to 3 MHz with a resolution of up to 0.1 Hz.
It includes two independent outputs (TTL and frequency) and offers various output waveforms: Sine, Square and Triangle.
It features a large format 6 digit LED display with waverform and frequency indicator that makes easier to operate this economical type function generator.
Specifications
| OUTPUT WAVEFORMS | Sine, Square, Triangle | ||
| WAVEFORM RANGE | Sine / Square: From 0.1 Hz to 3 MHz Triangle: From 0.1 Hz to 1 MHz |
||
| RESOLUTION | 0.1 Hz maximum | ||
| AMPLITUDE RANGE | 10 Vpp (50 Ω load) | ||
| ATTENUATOR | -40 dB ±10 % | ||
| DC OFFSET | From < -5 V to > +5 V (50 Ω load) | ||
| DUTY RANGE | From 25 % to 75 %, ≤ 1 MHz (Square Wave) | ||
| DISPLAY | 6 digits LED display |
