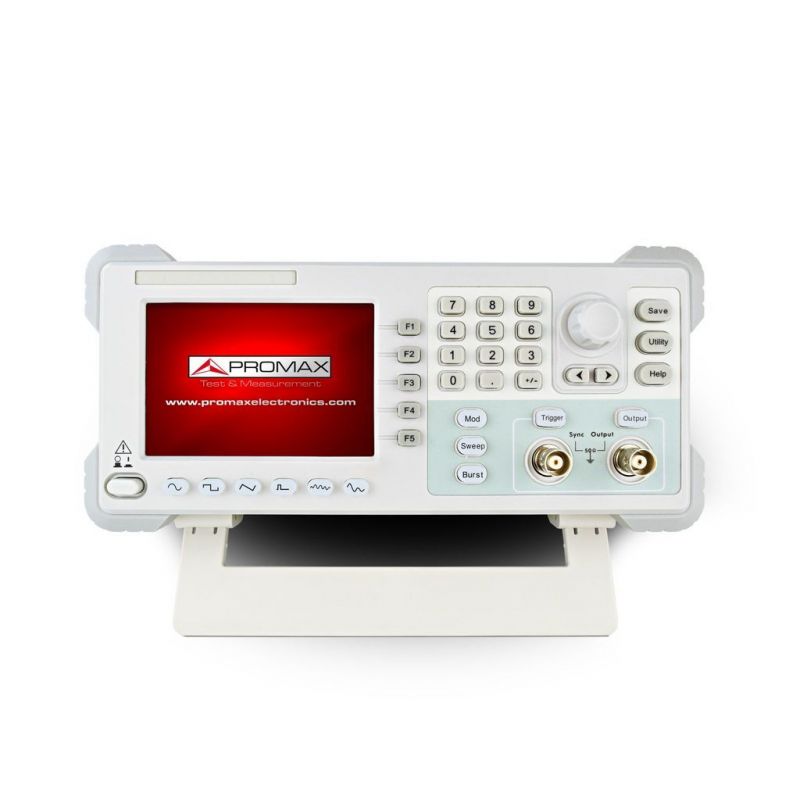

Promax GF-856 5 MHz Arbitrary Function Generator

User-customizable waveforms generator that can be created in the PC and uploaded to the instrument via USB.

€508.20
Tax included
Reference promax-gf-856
Brand Promax
Quantity
Available in 24/48h

Free shipping

Promax GF-856 5 MHz Arbitrary Function Generator

€508.20

The 5 MHz multifunction generator GF-856 which combines Arbitrary Waveform and Function Generator, uses DDS (Digital Data Storage) technology to offer two programmable signals in a 4 inches LCD colour screen. All basic waveform are pre-programmed.

Besides using the front panel keyboard for programming, the program can be enhanced in the PC and send it through USB or RS-232.

One feature that makes the generator especially interesting is the possibility of playing all types of analog and digital modulations: AM, FM, PM, FSK and perform sweeps and burst. The GF-858 also has an input for external modulation and external clock input. It includes a 6 digits frequency counter to 200 MHz.

Main Features

  • 4 inch high resolution (480 × 320 pixels) TFT LCD display
  • Advanced DDS technology
  • Sample rate 125 MS/s
  • Frequency resolution 1 μHz
  • Vertical resolution 14 bits
  • Waveform record length 1 M
  • 5 basic waveforms and 45 built-in arbitrary waveforms output
  • Standard interface USB port
  • PC software included

Specifications

SPECIFICATIONS GF-856
FREQUENCY OUTPUT 5 MHz
SAMPLE RATE 125 MS/s
VERTICAL RESOLUTION 14 bits
STANDARD WAVEFORM Sine, Square, Pulse, Ramp and Noise
ARBITRARY WAVEFORM Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave and others, total 48 built-in waveforms and user-defined arbitrary waveform
MODULATION AM, FM, PM, FSK, Sweep and Burst
MODULATION FREQUENCY 2 MHz to 20 kHz (FSK 2 mHz - 100 kHz)
COUNTER 100 MHz to 200 MHz
COMMUNICATION INTERFACE USB, LAN

Accessories

  • Control software
  • Fast guide
  • USB Cable
  • Network wire

More info

data sheet

USER MANUAL
