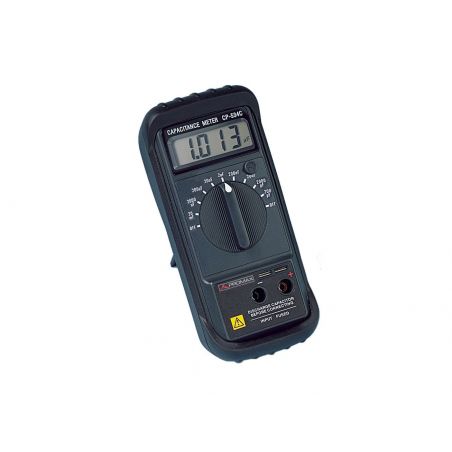

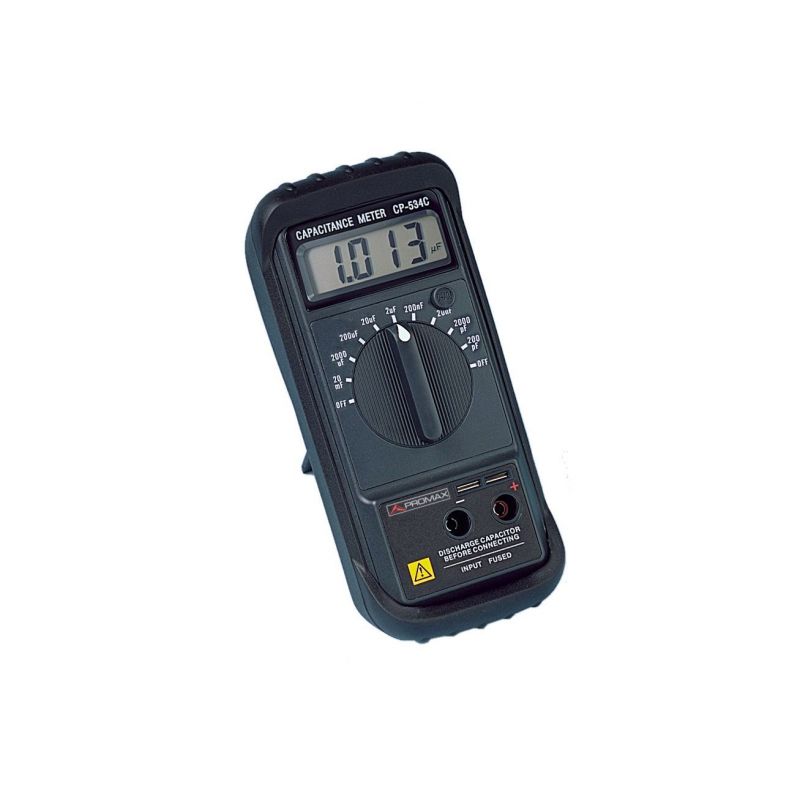

Promax CP-534C Capacimeter (includes shock protection)

Measures accurately capacitances of up to 20.000 micro farads.

€96.80
Tax included
Reference promax-cp-534c
Brand Promax
Quantity
Available in 24/48h

Free shipping

Promax CP-534C Capacimeter (includes shock protection)

€96.80

Measures accurately capacitances of up to 20.000 micro farads.

The CP-534C digital capacitance meter measures capacitantes of up to 20.000 µF with satisfactory accuracy. The instrument is an ideal addition in laboratories in which these type os components are used. It is also highly suitable for production work in both the analysis and the selection of component. For the measurement of low values, it has an end adjustment, which enables the compensation of the residual between the test cables. The inputs are fuse-protected. It is powered by a 9 V battery, and it can function for 200 hours.

Specifications

Measurement range 200 pF to 20.000 µF f.s. in 9 ranges
Zero adjustment Residual capacitance adjustment
test voltage 3.2 V max.
Protection By fuse
Presentation
Display 3 1/2, LCD 13 mm
Overrange Indication "1" o "-1"
Power features
Battery 9 V 6F22 type
Autonomy 200 h (alkaline)
Mechanical features
Dimensions W. 70 x H. 151 x D. 38 mm
Weight 200 g
Included accessories Test leads, 0.1 A / 250 V fuse, battery, instructions manual, holster.

Accessories included

  • Test leads
  • Fuse
  • Battery
  • User manual
  • Shock protector

Downloads

data sheet
