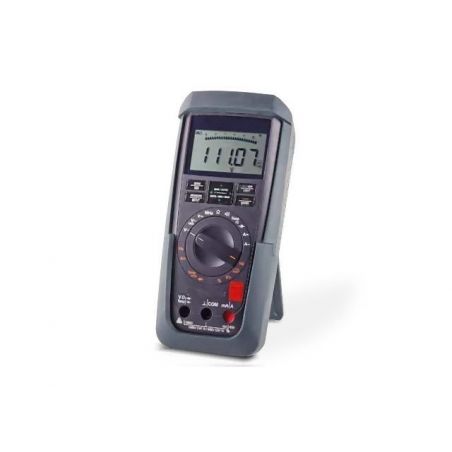

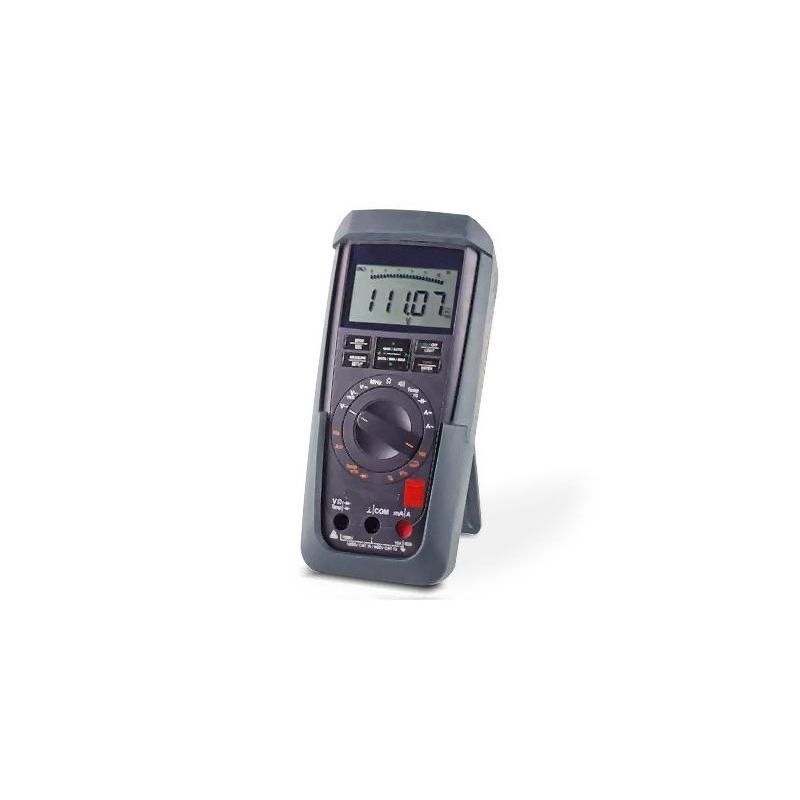

Promax IC-117 Digital Multimeter Professional Series 4 1/2 digits, 0.05% RMS PRO includes ENAC certification (Mh-PRO)
CAT III and CAT IV multimeters with advanced features such as continuity test, TRMS, filtering, diode measurement, MAX/MIN/DATA hold, memory for 15000 measurements and PC connection (depending on models). The IC-117 is the basic model, which incorporates measurement for TRMS voltage and current, frequency measurement and continuous current measurements. For advanced applications.
€762.30
Tax included
Reference
promax-ic-117
Brand
Promax
Promax IC-117 Digital Multimeter Professional Series 4 1/2 digits, 0.05% RMS PRO includes ENAC certification (Mh-PRO)
€762.30
CAT III and CAT IV multimeters with advanced features such as continuity test, TRMS, filtering, diode measurement, MAX/MIN/DATA hold, memory for 15000 measurements and PC connection (depending on models).
The digital multimeters IC-117 and IC-118 have been designed to be used both in field tasks and in desktop applications: laboratories, telecommunications, education etc.
The IC-117 is the basic model, which incorporates measurement for TRMS voltage and current, frequency measurement and continuous current measurements. For advanced applications.
Both models incorporate a locking system that makes only the necessary terminals accessible to take the measurement that the user has established through the rotary selector, minimizing the danger of personal or material damage due to improper handling. It is a safety measure that makes IC-117 and IC-118 especially suitable for the field of training.
Specifications
| CURRENTS | From 1 A to 10 A |
| TENSIÓN | From 100 mV to 1000 V |
| RESISTANCE | From 100 Ω to 40 MΩ |
| CAPACITY | From 10 nF to 1000 µF |
| FREQUENCY | From 100 Hz to 1 MHz |
| GENERAL | - Three terminals with automatic locking - Overload protection - Effective value (TRMS AC) - Filter option for V AC measurements - 5V rectangular signal measurement - Analog scale to indicate trends - Diode measurement - Automatic or manual selection of the measuring range - Continuity measurement with acoustic signal - Memory functions: MAX / MIN / DATA Hold - Automatic disconnection and battery charge status indicator |
| ACCESSORIES INCLUDED | - Safety measuring cables (1.5 m) 4mm measuring tips (1000 V CAT III, 600 V CAT IV) - 2 batteries 1.5 V, type AA |
