Equipment with two variable outputs of up to 30 V and 5 A that can work in independent, serial or parallel mode, plus a fixed auxiliary output of 5 V and 3 A. Suitable for universities, secondary education and automotive centers.

The FA-665B power supply provides two variable voltage outputs between 0 and 30 V symmetrical and a current up to 5 A. All outputs are perfectly protected against short circuits in any control setting since the maximum current it can provide is internally adjustable .

Variable sources can operate independently, in serial mode to reach 60 V or in parallel mode to deliver 10 A.

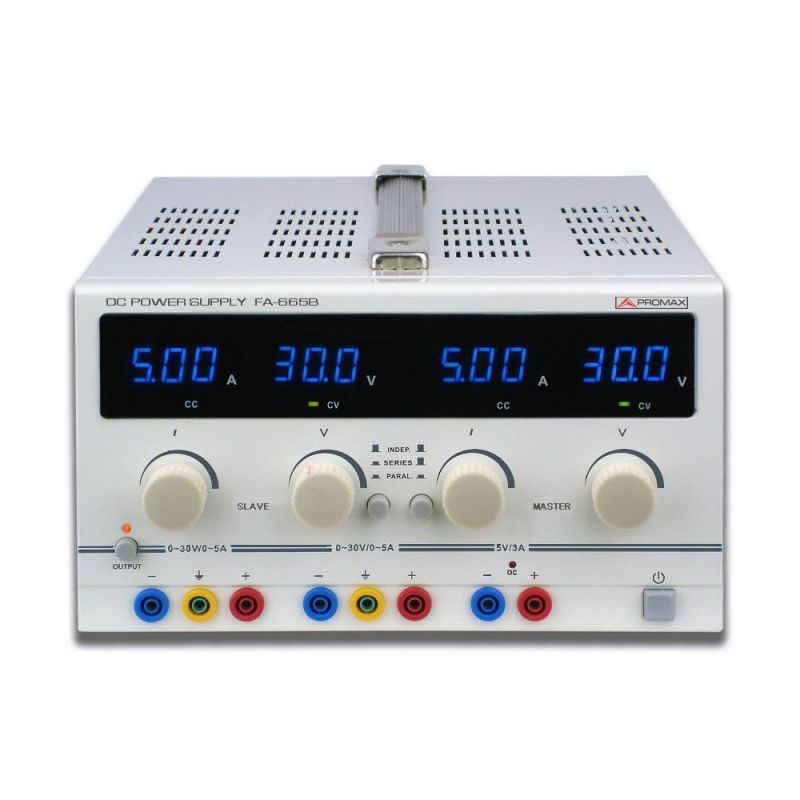

The dual power supply has four displays that allow the user to read the voltage and current simultaneously. An output cut-off switch has been incorporated to stop the power supply of the circuits under test without having to change the control settings. Thanks to this application, the FA-665B is especially suitable for laboratories, repair and maintenance centers as well as for educational centers or the automotive industry.

Specifications

Downloads

data sheet

MANUAL
