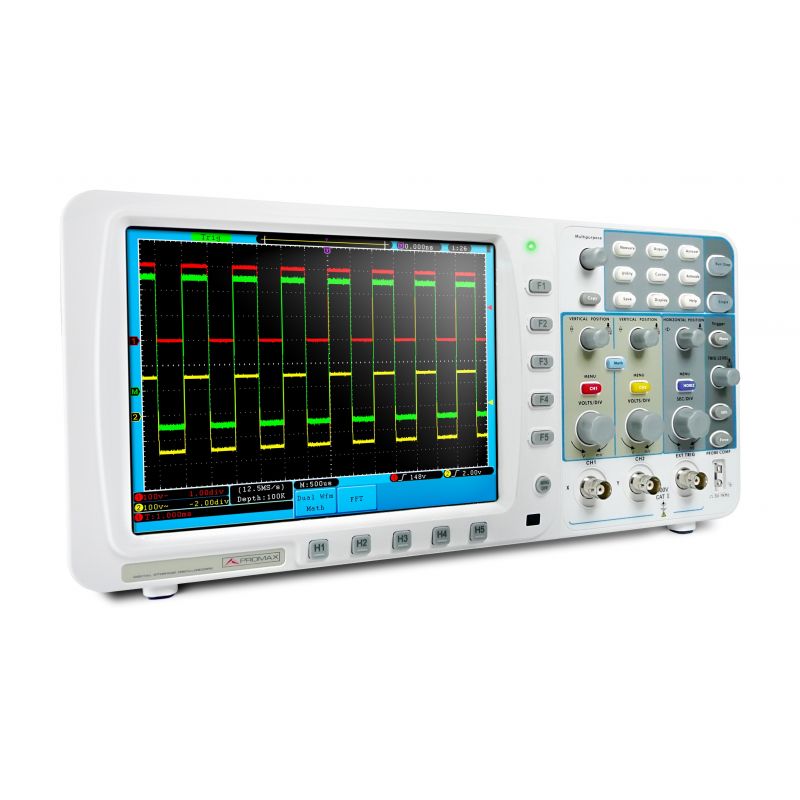

Promax digital oscilloscope with 2 + 1 channels, 100 MHz and 1 GS/s with 8 "USB screen, Pass/Fail and LAN

Osciloscopio digital de PROMAX con ancho de banda de 100 MHz y tasa de muestreo en tiempo real de 1 GS/s. Con pantalla de 8” y conectividad USB host, USB device, Pasa/Falla y LAN. Gama Profesional

€762.30
Tax included
Reference promax-od-610
Brand Promax
Quantity
Available in 24/48h

Free shipping

Promax digital oscilloscope with 2 + 1 channels, 100 MHz and 1 GS/s with 8 "USB screen, Pass/Fail and LAN

€762.30

The PROMAX OD-610 is a digital oscilloscope with a bandwidth of up to 100 MHz and a real-time sampling rate of up to 1 GS / s. This economical range digital oscilloscope has a large 8 "screen.

They include advanced functions such as different trigger modes, 20 automatic measurements, waveform storage and USB connectivity.

Its ultra-thin body (only 8 cm deep), compact design and low weight make these digital oscilloscopes PROMAX ideal not only for desktop applications such as circuit design or production lines but also for those cases that require transporting the instrument. place to place: car maintenance, education and training, etc.

Features

  • Bandwidth: 100 MHz
  • Sampling rate: 1 GS / s
  • Record length up to 100 K (optional 10 M)
  • Ultra thin body (depth of only 7 cm)
  • 8 "color screen LCD-TDT and high resolution, 800x600 pixels
  • 19 automatic measures. Mathematical functions and Pass / Fail function
  • Communication interfaces: USB host, USB device, Pass / Fail, LAN, VGA (optional)

Specifications

SPECIFICATIONS
Bandwidth 100 MHz
Sample rate 1 GS/s
Horizontal scale (s/div) From 4 ns/div to 100 s/div, 1-2-5 steps
Rise Time (at input, typical) ≤3.5 ns
Trigger type Edge, Pulse, Video, Slope, Alternate
Channel 2+1 (external)
Display 8” color LCD, TFT display, 800x600 pixels
Input impedance 1 MΩ ±2 %, in parallel with 10 pF ±5 pF
Channel isolation 100:1 (50 Hz), 40:1 (10 MHz)
Max input voltage 400 V (PK-PK) (DC+AC, PK-PK)
DC gain accuracy ±3 %
Record length 10 M
DC accuracy (average) DC accuracy (average) Average ≥16: ±(3% reading + 0.05 div) for ΔV
Probe attenuation factor 1x, 10x, 100x, 1000x
Low Frequency response ≥ 10 Hz (at input, AC coupling, -3 dB)
Sampling rate / Relay time accuracy ±100 ppm
Interpolation sin(x) / x
Interval (ΔT) accuracy (DC~100 MHz)

Single: ±(1 interval time + 100 ppm x reading + 0.6 ns)

Average > 16: ±(1 interval time + 100 ppm x reading + 0.4 ns)
Input coupling DC, AC and GND
Vertical resolution (A/D) 8 bits resolution (2 channels simultaneously)
Vertical sensitivity 2 mV/div - 10 V/div (at input)
Trigger mode Auto, Normal, Single
Trigger level ±6 divisions from screen center
Line / Field frequency (video) NTSC, PAL y SECAM
Cursor measurement ΔV and ΔT between cursors
Automatic measurements VPP, Avg, VRMS, Max, Min, VTOP, VBASE, VAMP, Freq, Period, Overshoot, Preshoot, Rise time, Fall time, Delay A→B , Delay A→B , +Width, -Width, +Duty, -Duty
Waveform math +, -, x, ÷, invert, FFT
Waveform storage 15 waveforms
Lissajous figure Full bandwidth. Phase difference: ±3 degrees
Communication interface USB 2.0, USB for file storage, LAN, RS-232
Cymometer Available
Power supply From 100 to 240 V, 50/60 Hz, CAT II
Power consumption < 24 W
Fuse 2 A, T class, 250 V
Dimensions 348 (W.) x 170 (H.) x 78 (D.) mm
Weight (without package) 1.50 kg
Accessories Passive probe (x2), Power cord, USB cable, Quick reference guide, Battery (optional)
