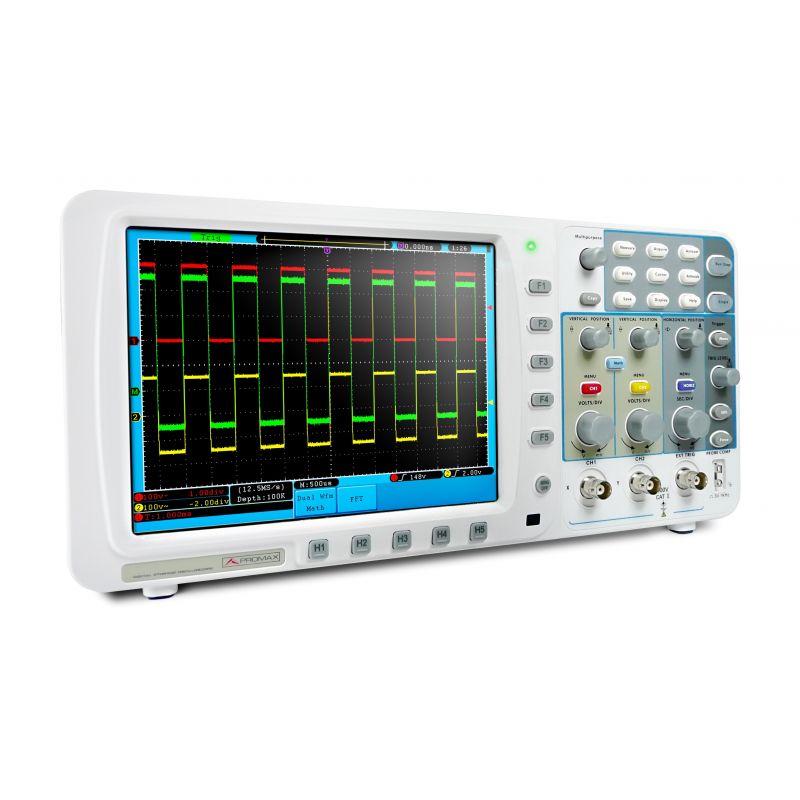

Promax 2 + 1 channel digital oscilloscope, 200 MHz and 2 GS / s with 8 "USB screen, Pass / Fail and LAN

PROMAX digital oscilloscope with 200 MHz bandwidth and real-time sampling rate of 2 GS / s. With 8 "screen and USB host connectivity, USB device, Pass / Fail and LAN. Professional Range

€1,391.50
Tax included
Reference promax-od-620
Brand Promax
Quantity
Available in 24/48h

Free shipping

Promax 2 + 1 channel digital oscilloscope, 200 MHz and 2 GS / s with 8 "USB screen, Pass / Fail and LAN

€1,391.50

PROMAX OD-620 is a digital storage oscilloscope featuring up to 200 MHz of bandwidth and up to 2 GS/s real time sample rate. This professional range digital oscilloscope features an unprecedented large 8” high resolution display.

They include advanced functions such as several trigger modes, 20 automatic measurements, waveform storage and USB connectivity.

Their ultra-thin body (just 8 cm depth), compact design and light weight makes these PROMAXdigital oscilloscopes ideal not only for desktop applications such as circuit design or production lines but also for those cases that demand to carry the instrument from one location to another: automobile maintenance and testing, education and training, etc.

Features

  • Bandwidth: 200 MHz
  • Sample rate: 2 GS/s
  • Up to 10 M record length
  • Ultra thin body (8 cm depth)
  • 8” high resolution color LCD-TFT display, 800x600 pixels
  • 20 automatic measurements. Math functions
  • Communication interfaces: USB 2.0, USB for file storage, LAN, VGA

Specifications

SPECIFICATIONS OD-620 DIGITAL STORAGE OSCILLOSCOPE - PROFESSIONAL RANGE
Bandwidth 200 MHz
Sample rate 2 GS/s
Horizontal scale (s/div) From 2 ns/div to 100 s/div, 1-2-5 steps
Rise Time (at input, typical) ≤ 1.7 ns
Trigger type Edge, Pulse, Video, Slope, Alternate
Channel 2+1 (external)
Display 8” color LCD, TFT display, 800x600 pixels
Input impedance 1 MΩ ±2 %, in parallel with 10 pF ±5 pF
Channel isolation 100:1 (50 Hz), 40:1 (10 MHz)
Max input voltage 400 V (PK-PK) (DC+AC, PK-PK)
DC gain accuracy ±3 %
Record length 10 M
DC accuracy (average) Average ≥16: ±(3% reading + 0.05 div) for ΔV
Probe attenuation factor 1x, 10x, 100x, 1000x
Low Frequency response ≥ 10 Hz (at input, AC coupling, -3 dB)
Sampling rate / Relay time accuracy ±100 ppm
Interpolation sin(x) / x
Interval (ΔT) accuracy (DC ~ 100 MHz)

Single: ±(1 interval time + 100 ppm x reading + 0.6 ns)

Average > 16: ±(1 interval time + 100 ppm x reading + 0.4 ns)
Input coupling DC, AC and GND
Vertical resolution (A/D) 8 bits resolution (2 channels simultaneously)
Vertical sensitivity 2 mV/div - 10 V/div
Trigger mode Auto, Normal, Single
Trigger level ±6 divisions from screen center
Line / Field frequency (video) NTSC, PAL and SECAM
Cursor measurement ΔV and ΔT between cursors
Automatic measurements  VPP, Avg, VRMS, Max, Min, VTOP, VBASE, VAMP, Freq, Period, Overshoot, Preshoot, Rise time, Fall time, Delay A→B, Delay A→B, +Width, -Width, +Duty, -Duty
Waveform math +, -, x, ÷, invert, FFT
Waveform storage 15 waveforms
Lissajous figure Full bandwidth. Phase difference: ±3 degrees
Communication interface USB 2.0, USB for file storage, LAN, VGA
Cymometer Available
Power supply From 100 to 240 V, 50/60 Hz, CAT II
Power consumption < 24 W
Fuse 2 A, T class, 250 V
Dimensions 348 (W.) x 170 (H.) x 78 (D.) mm
  DESIGN AND SPECIFICATIONS ARE SIBJECT TO CHANGES WITHOUT PRIOR NOTICE08-16
Weight (without package) 1.50 kg
Accessories  Passive probe (x2), Power cord, USB cable, Quick referece guide, Battery (optional)
