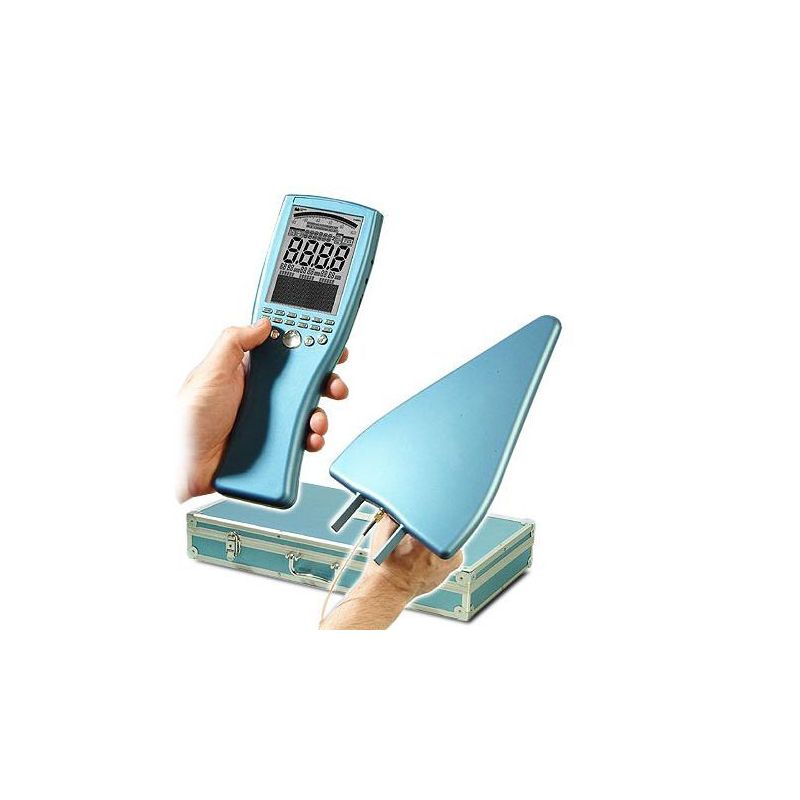

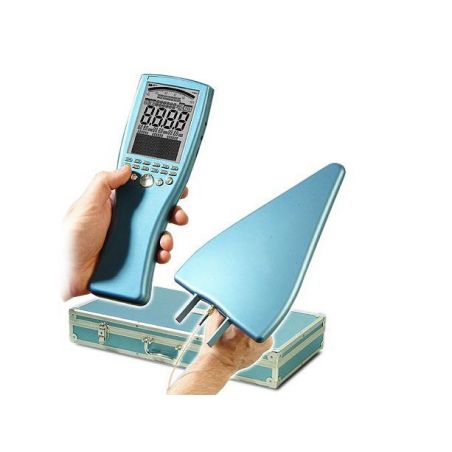

Promax IC-055C BF electromagnetic field measurement system from 1 Hz to 1 MHz with spectrum analyzers for EMC, EMF and RF

Spectrum analyzers for low frequency and portable and easy to use EMF analysis. They include PC software with high graphic resolution and data acquisition (datalogger). Calibration certificate included.

€3,557.40
Tax included
Reference promax-ic-055c
Brand Promax
Quantity
Available in 24/48h

Free shipping

Promax IC-055C BF electromagnetic field measurement system from 1 Hz to 1 MHz with spectrum analyzers for EMC, EMF and RF

€3,557.40

Spectrum analyzers for low frequency and portable and easy to use EMF analysis. They include PC software with high graphic resolution and data acquisition (datalogger).

The innovative spectrum analyzers IC-055 (for low frequency and EMF analysis) are designed to meet the demands of electronic engineers and environmental technicians, thanks to their complete functions, portability and easy handling. And all with an economic price.

The IC-055 can be used to analyze high voltage lines, transformer stations, lamps, power supplies, etc.

They include a powerful PC software:

Features

  • Remote control of several computers, data analysis on the PC monitor.
  • High resolution graphics.
  • Reading channel identifiers for an exact identification of each provider.
  • Up to 10 markers that show frequency and level values.
  • Zoom function.
  • Data logger (datalogger) to continuously and directly save the measurement data on the hard disk of the PC.
  • Various predefined profiles: DECT, EMTS, GSM, WLAN, etc.
  • Indication of predefined exposure limits (ICNIRP, ECOLOG ...) or user-configured
  • Analyzer firmware update
  • Calibration Certificate Included

Specifications

IC-055
FREQUENCY MARGIN 1 Hz to 1 MHz
ELECTRICAL FIELD MARGIN

1 V/m to 20 kV/m (typical, 1D)

From 1 pT to 200 mT (typical, 3D)

From 10 nG to 2000 G (typical, 3D)
CHARACTERISTICS (depending on models)
  • Power measurement in vector (I / Q) and True RMS
  • ICNIRP full margin extended
  • "Aliases free sweep" RBW 300 kHz - 3 MHz
  • "Fast zero-span" sweep
  • Isotropic magnetic field measurement (3D)
  • Configurable antenna and cable calibration
  • Retention and acquisition of measures
  • Firmware updates from the Internet
  • Signal identification and direct frequency
  • Fast FFT or DFT spectrum analysis
  • Calculation of simultaneous limits and percentage
  • AM and FM audio / internal speaker
  • Real-time broadband power detector
