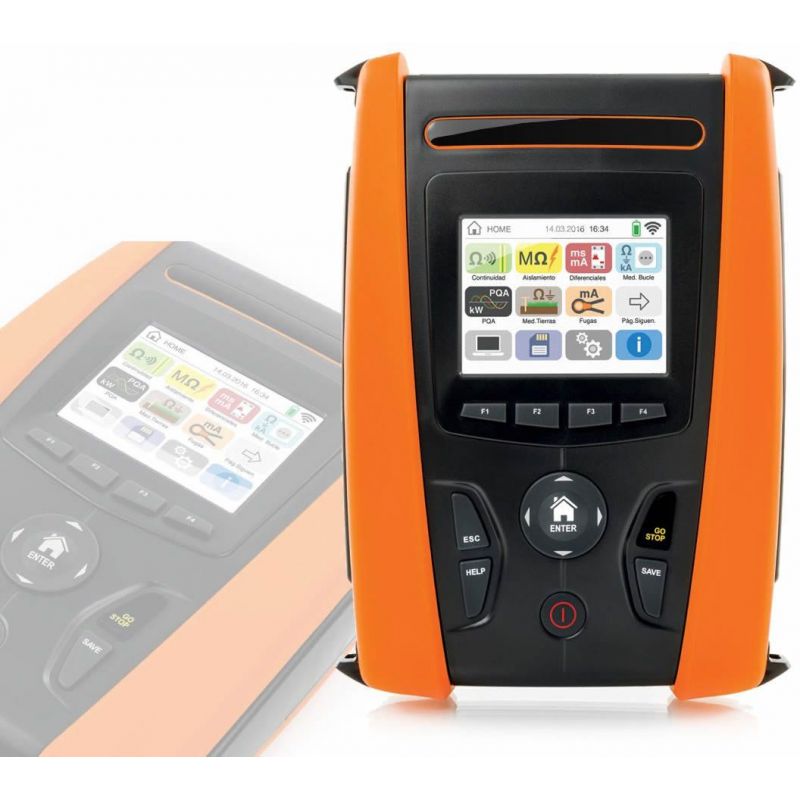

Promax IC-028C Installation tester and three-phase network analysis

Designed for the verification of electrical safety according to the REBT with Analyzer of electrical networks (single-phase and three-phase) and energy consumption. The measurements made can be transmitted by WiFi to a Smartphone or Tablet to manage them and insert photos, video or voice record.

€5,844.30
Tax included
Reference promax-ic-028c
Brand Promax
Quantity
Available in 24/48h

Free shipping

Promax IC-028C Installation tester and three-phase network analysis

€5,844.30

Designed for the verification of electrical safety according to the REBT with Analyzer of electrical networks (single-phase and three-phase) and energy consumption. The measurements made can be transmitted by WiFi to a Smartphone or Tablet to manage them and insert photos, video or voice record.

The IC-028C is the only instrument on the market designed for the verification of electrical safety according to the REBT with Analyzer of electrical networks (single-phase and three-phase) and energy consumption.

It has been designed to perform all kinds of simple and fast measurements. Thanks to the new HTOS system at the end of the measurements, the user will get the OK-NO OK message that the test performed is in accordance or not with current regulations.

All memorized data can be structured in folders and subfolders and can even attach comments and voice memos.

Also through the free HTAnalysis APP compatible with iOS and Android, the measurements can be transmitted via WiFi to a Smartphone or Tablet. You can insert photos, video or voice record to each measure.

Specifications

ELECTRICAL SAFETY TESTS
  • Continuity protective conductors
  • Insulation Resistance
  • Time/Current of differential intervention
  • RCD intervention current (ramp test)
  • Line/Loop Impedance PN, P-P, P-PE
  • Alleged short circuit current
  • Contact voltage
  • Earth resistance with spades
  • Terrain Resistivity
  • Ground loop resistance without RCD intervention
  • Cyclic direction indication of the phases
  • Percent voltage drop over lines
  • Tests with remote tip use
THREE-PHASE NETWORK ANALYZER
  • Network and energy consumption analysis
  • 9 types of electrical systems available
  • AC TRMS voltage
  • Measure/Record Power, Energy, Power factor and cosφ
  • Voltage, current, DC Power
  • Neutral current measurement

Downloads

DATA SHEET
