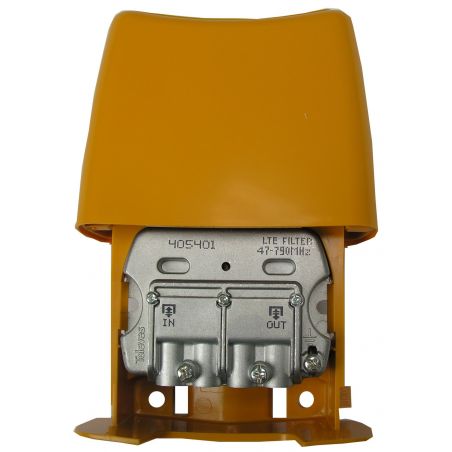

LTE / 4G filter EasyF 47..790MHz (C21-60) outdoor 20dB Televes

Easy F anchor for easy connection.

This product is replaced by the LTE filter High Rejection (HR) "EasyF" 47...694MHz VHF/UHF (C21-48) Exterior

€23.84
Tax included
Reference televes-405401
Brand Televes
Quantity
Available in 24/48h

Free shipping

LTE / 4G filter EasyF 47..790MHz (C21-60) outdoor 20dB Televes

€23.84

External LTE filter / 4G selective 20 dB Televes



Features

  • Range of products to protect the UHF band allocated to TV services from interferences caused by the data transmission on the LTE band.
  • Two types of LC filters with different performance in terms of rejection and performance for applications where channels above Ch58 are in use.
  • Three type of product for outdoor & indoor use, “F”, “IEC” and “EasyF”.

Specifications

Reference  405401
 Connector type  EasyF
 Bandwidth MHz 5-790
 Through Loss dB 1
 Through loss at the edge of the frequency range dB 6
 Rejected band MHz 793-862
 Isolation in the rejected band dB >20
 Dimensions (Wid x Hei x Dep) mm 88 x 79 x 42
 Protection Index IP 23
