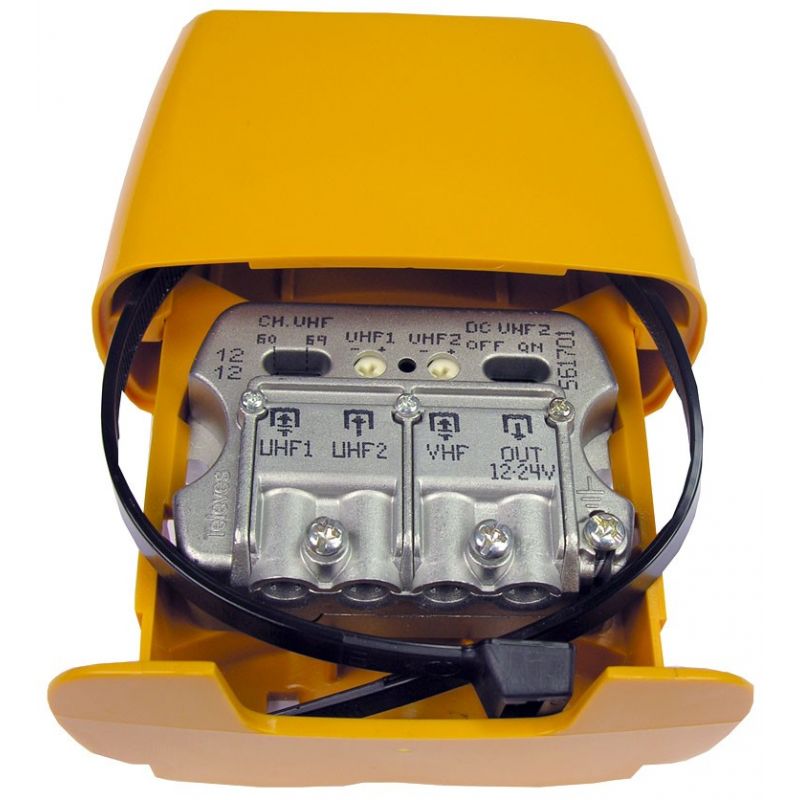

Mast amplifier 27dB, 3 inputs with LTE / 4G Televes NanoKom filter

UHF / VHF amplifier with 27 dB of 3 inputs and 1 output with LTE / 4G Televes NanoKom filter

This product is replaced by the Amplifier Mast NanoKom 3e/1s EasyF UHF[dc]/UHF/VHFmix 12...24V LTE700 Televes

€36.52
Tax included
Reference televes-561701
Brand Televes
Quantity
Available in 24/48h

Free shipping

Mast amplifier 27dB, 3 inputs with LTE / 4G Televes NanoKom filter

€36.52

Televes Nanokom 4G mast amplifier increases the signal of your Digital Terrestrial Television antenna and leaves it ready for the Digital Dividend.

Amplifier of 27dB, 3 inputs / 1 output and LTE / 4G filter.

Get ready for the Digital Dividend!
LTE / 4G signals are just around the corner, these will negatively affect the television signal, so we have to be prepared and install filter systems to improve our DTT signals avoiding interference and signal problems improving the quality of image.

Breakthrough technology “USOS” for a range of amplifiers with oustanding design.

Features

  • USOS (User Selectable Output Signal). The user adjusts the required output level and the device will adapt dinamically to the changing received signal.
  • Ch60/C69 switch to activate LTE filter.
  • ON/OFF switch to activate DC bypass.
  • Very low noise figure.
  • User friendly design for very small size and easy of use.
  • EasyF connection type.
  • Weatherproof cases made of ABS plastic.

Specifications

Reference   561701
 Inputs/ Bands UHF1 UHF2 VHF
 Frequency range MHz  470-862
470-790*		 470-862
470-790*		 47-254
 Gain dB 27 27 -1,5
 Output level DIN45004B dBμV 107 107 -
 Automatic gain margin dB - - -
 Output level regulation margin Vout dBμV - - -
 Automatic output level  (10 DTT channels) dBμV - - -
 Gain adjustment range dB 0-20 0-20 -
 Noise figure dB 6 6 -
 Power supply Vdc 12-24
 Current consumption mA 45
 Max current through inputs mA - 40 -
 Protection index IP 23
 Dimensions (Wid x Hei x Dep) mm 88 x 79 x 42
