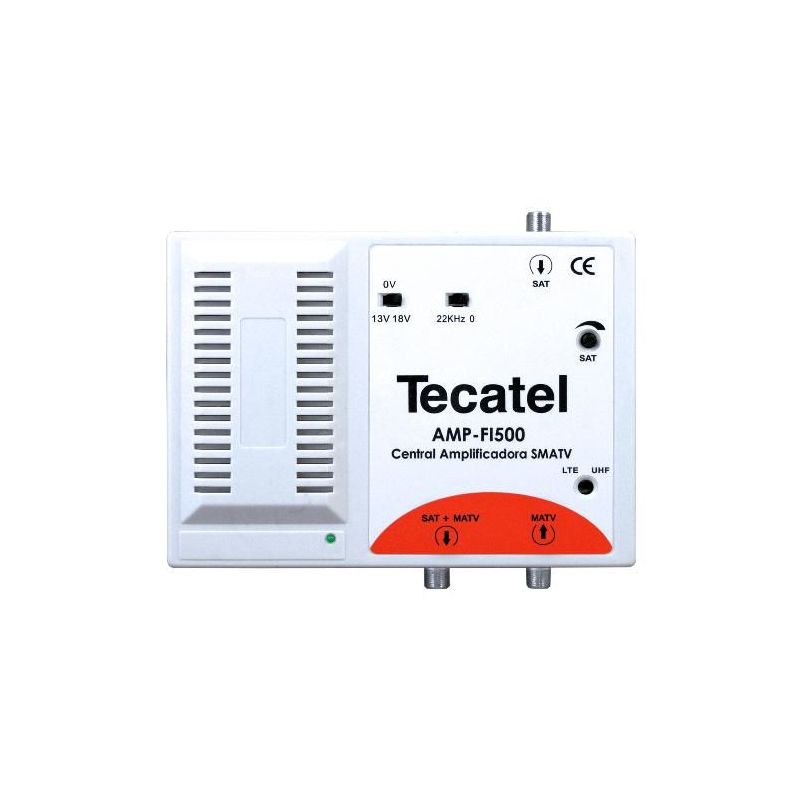

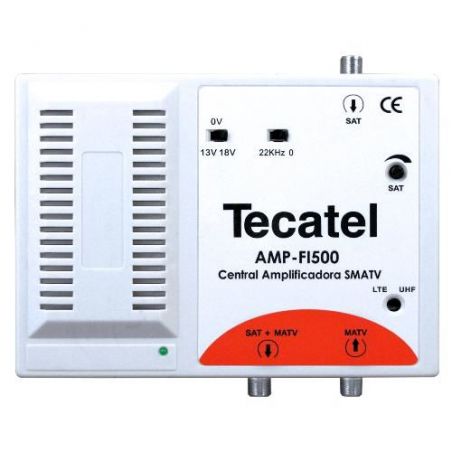

Central Amplifier Tecatel 35db with LTE/4G filter

Central Amplifier Tecatel AMP-FI500 35db with LTE/4G filter. FI header amplifier with terrestrial signal mixing. Bandpass LTE switchable. Frequency range of 950-2150 MHz. Power LNB

€82.04
Tax included
Reference tecatel-AMP-FI500
Brand Tecatel
Quantity
Available Now

Free shipping

Central Amplifier Tecatel 35db with LTE/4G filter

€82.04

Central Amplifier Tecatel AMP-FI500 35db with LTE/4G filter.

Amplifier unit with built-in LTE/4G filter and IF mix. Product prepared to meet the demands of the new LTE conditions, and also allows mixing satellite signals in a single element.

Features

  • FI headend amplifier, terrestrial signal combiner
  • LTE switchable filter
  • Frequency range from 950 to 2150 MHz.
  • LNB Power

Specifications

FI input
Frequency range   950-2150 MHz
Gain   35 dB
Gain adjustment

950 – 1450 MHz

1451 – 2300 MHz

 15 dB
Noise figure   8 dB
Output level (IMD=-35 dB)   120 dBμV
LNB line feeding   Internal
Selected FI input voltage   0/+13/+18V
Selected FI input tones   0/22kHz
RF input
Frequency range   47-862 MHz
Insertion loss   0... -2 dB
Rejection LTE band (791-862MHz)   35dB
Electrical
Power supply   220V/AC, 50 Hz
Power consumption   15 W
Operating temperatura range   -10 ÷ 55 oC
Dimensions / Weight (packed)   210x150x50 mm / 0.57 kg
