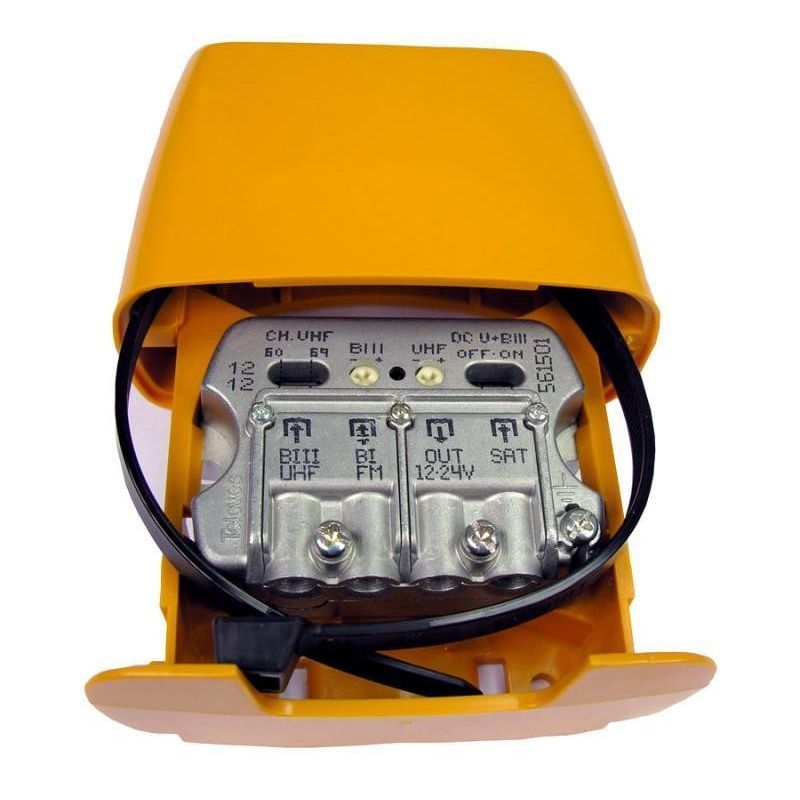

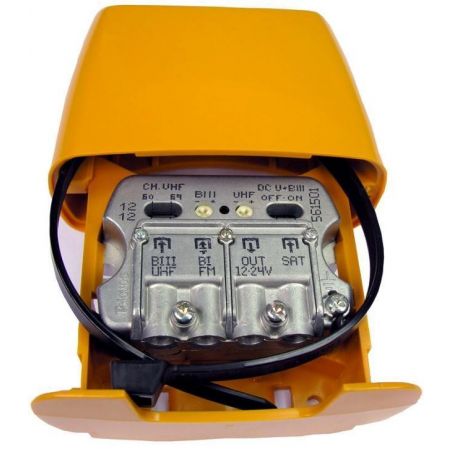

29dB mast amplifier, 3 inputs with LTE / 4G filter Televes NanoKom

Televes Nanokom 4G mast amplifier increases the signal of your Digital Terrestrial Television antenna and leaves it ready for the Digital Dividend. Amplifier of 29dB, 3 inputs / 1 output and LTE / 4G filter.

This product is replaced by the Amplifier Mast NanoKom 3e/1s EasyF BIII/UHF[dc]/FMmix/FImix[dc]12 ... 24V LTE700 Televes

€44.61
Tax included
Reference televes-561501
Brand Televes
Quantity
Available in 24/48h

Free shipping

29dB mast amplifier, 3 inputs with LTE / 4G filter Televes NanoKom

€44.61

Televes Nanokom 4G mast amplifier increases the signal of your Digital Terrestrial Television antenna and leaves it ready for the Digital Dividend.

Amplifier of 29dB, 3 inputs / 1 output and LTE / 4G filter.

LTE / 4G signals are just around the corner, these will negatively affect the television signal, so we have to be prepared and install filter systems to improve our DTT signals avoiding interference and signal problems improving the quality of image.

Features

Breakthrough technology “USOS” for a range of amplifiers with oustanding design.

  • USOS (User Selectable Output Signal). The user adjusts the required output level and the device will adapt dinamically to the changing received signal.
  • Ch60/C69 switch to activate LTE filter.
  • ON/OFF switch to activate DC bypass.
  • Very low noise figure.
  • User friendly design for very small size and easy of use.
  • EasyF connection type.
  • Weatherproof cases made of ABS plastic.

Specifications

 Inputs/ Bands   UHF/BIII BI/FM SAT
 Frequency range MHz 470-862
470-790*		  174-254 47-108 950-2150
 Gain dB  29 20 -2 -2
 Output level DIN45004B dBμV  107  105 - -
 Automatic gain margin dB  0-15  0-15 - -
 Output level regulation margin Vout dBμV  0-12  0-12 - -
 Automatic output level  (10 DTT channels) dBμV  94  - - -
 Gain adjustment range dB  -  - - -
 Noise figure dB  1,5  3,5 - -
 Power supply Vdc 12-24
 Current consumption mA 45
 Max current through inputs mA 40 - 300
 Protection index IP 23
 Dimensions (Wid x Hei x Dep) mm 88 x 79 x 42
