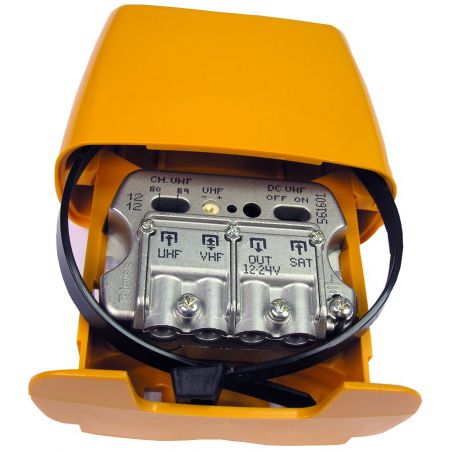

Mast Amplifier 12-24V 3E / 1S U-Vmix FImix with LTE / 4G filter Televes NanoKom

UHF / VHF amplifier with 3 inputs and 1 output with LTE / 4G Televes NanoKom filter. Powered with 12-24V. Mixture U-V and FI

€33.03
Tax included
Reference televes-561601
Brand Televes
Quantity
Last items in stock

Free shipping

Mast Amplifier 12-24V 3E / 1S U-Vmix FImix with LTE / 4G filter Televes NanoKom

€33.03

Breakthrough technology “USOS” for a range of amplifiers with oustanding design.

Features

  • USOS (User Selectable Output Signal). The user adjusts the required output level and the device will adapt dinamically to the changing received signal.
  • Ch60/C69 switch to activate LTE filter.
  • ON/OFF switch to activate DC bypass.
  • Very low noise figure.
  • User friendly design for very small size and easy of use.
  • EasyF connection type.
  • Weatherproof cases made of ABS plastic.

Specifications

Reference   561601
 Inputs/ Bands   UHF VHF SAT
 Frequency range MHz 470-862
470-790*		 47-108 950-2150
 Gain dB 30 -1,5 -2,5
 Output level DIN45004B dBμV  107 - -
 Automatic gain margin dB  0-15 - -
 Output level regulation margin Vout dBμV  0-12 - -
 Automatic output level  (10 DTT channels) dBμV  94 - -
 Gain adjustment range dB  - - -
 Noise figure dB 1 - -
 Power supply Vdc 12-24
 Current consumption mA 40
 Max current through inputs mA 40 - 300
 Protection index IP 23
 Dimensions (Wid x Hei x Dep) mm 88 x 79 x 42
